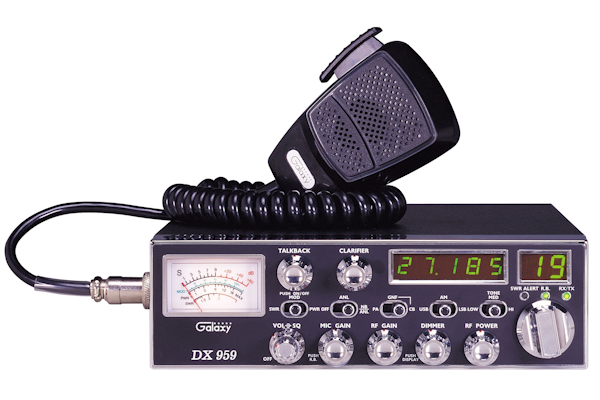

Galaxy (DX 959) - Transceiver With Frequency Counter, Large Meter, Talk Back, High SWR Alert Circuit, AM/USB/LSB/PA, 40 Channel, Mobile CB Radios


Product ID:   PID0282
Status: Out of Stock - Can Not Order At This Time

Galaxy (DX 959)  - Transceiver With Frequency Counter, Large Meter, Talk Back, High SWR Alert Circuit, AM/USB/LSB/PA, 40 Channel, Mobile CB Radios



Price:
Quantity:





"Optimum Performance" Upgrade Option:





Galaxy (DX 959) - Transceiver With Frequency Counter, Large Meter, Talk Back, High SWR Alert Circuit, AM/USB/LSB/PA, 40 Channel


Description:

The DX959 has many impressive features including a frequency counter, a large easy-to-read Galaxy meter, talkback, and SSB capability.

Galaxy - Amateur and CB Radios


Features and Specifications:

  • Mobile CB Radio
  • AM/USB/LSB/PA, but no FM
  • 40 Channels
  • AM 4 Watt; USB/LSB 12 Watt PEP
  • 7 7/8" (W) x 9 1/4" (D) x 2 1/8" (H) - 5.5 lbs.
  • Large, easy-to-read meter with 4 scales
    • Signal Strength
    • RF Output Power
    • SWR Level
    • AM Modulation Level
  • Color of Meter Lamp: White
  • Color of Channel Digits: Green
  • Frequency Counter with On/Off Switch
  • Color of Frequency Digits: Green
  • Chassis Size: Full
  • Microphone Jack Location: Side
  • Talkback with On/Off switch: Variable
  • Variable Power Output
  • Automatic SWR Circuit
  • High SWR Alert Circuit
  • Variable Dimmer Control
  • Clarifier Control
  • Roger Beep
  • NB and ANL Noise Circuits
  • Receive (RF) Gain Control
  • Mic Gain Control
  • Jacks for PA and External Speaker
  • Complete Service Manual Online
  • Specifications:
    • General:
      • Model: DX 959
      • Channels: 40
      • Frequency Range: 26.965 - 27.405 MHz
      • Emission: AM/USB/LSB
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Stability: 0.001%
      • Temperature Range: -30C to +50C
      • Antenna Impedance: 50 Ohms
      • Speaker Impedance: 8 Ohms
      • Antenna Connectors: Standard SO-239 type
      • Input Voltage: 13.8V DC
      • Size: 7 7/8" (W) x 9 1/4" (D) x 2 1/8" (H)
      • Weight: 5.5 lbs.
      • Meter: Illuminated; RF Output Power, Antenna SWR, Receive Signal Strength, Modulation %
    • Transmitter:
      • RF Power Output: AM 4 Watt; USB/LSB 12 Watt PEP
      • Spurious Emission: Better than -55 dB
      • Unwanted Sideband: Better than -55 dB
      • Frequency Tolerance: 0.005%
      • Frequency Response: 300 to 2500 Hz
      • Microphone: Dynamic
    • Receiver:
      • Sensitivity for 10 dB (S+N)/N: AM: < 0.5 microV; USB/LSB: < 0.25 microV
      • Squelch Sensitivity: < 0.5 microV
      • Image Rejection: -65 dB
      • Clarifier Range: +/- 1.0 KHz
      • AGC Figure of Merit: 100 mV for 10 dB Change in Audio Output
      • Audio Power Output: 2W @ 10% Distortion
      • Audio Response: 300 to 2500 Hz
  • Contents:
    • CB Mobile Galaxy DX 959 Radio
    • 4 Pin Dynamic Microphone
    • DC Power Cord
    • Mounting Bracket with Hardware
    • Microphone Hanger with Hardware
    • User's Manual
  • UPC 0656955109598
  • Color: Black
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each


Galaxy DX 959 - Mobile CB Radio
Galaxy DX 959 - Mobile CB Radio


Galaxy DX 959 - Operation's Guide
Galaxy DX 959 - Operation's Guide


The DX 959 Manual


Galaxy Mobile CB Radios - Feature Comparison Chart


Galaxy (DX 959) - Transceiver With Frequency Counter

Please Note:
  • This Selection Is Galaxy (DX 959) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
