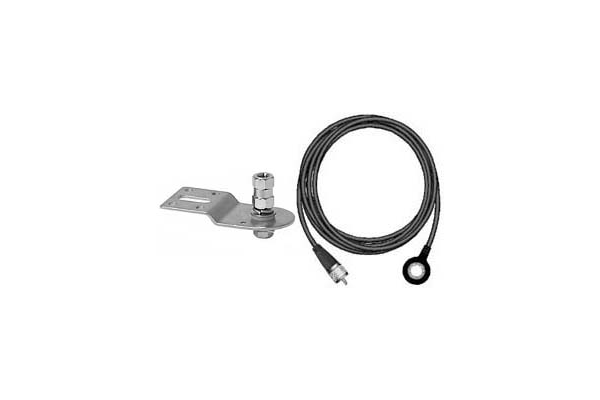

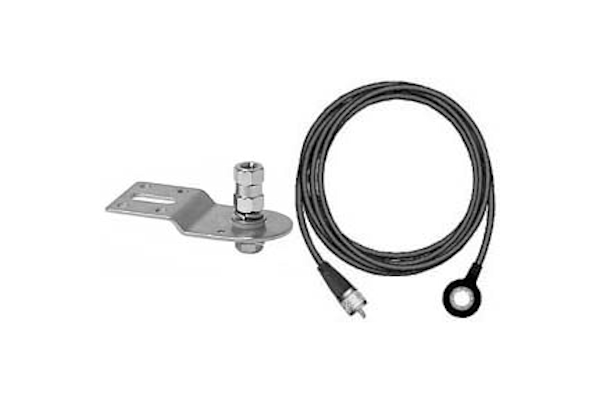

FireStik (MK-184R) - Stainless Steel Dodge Ram/Dakota Hood Channel Mount Mini-Kit, Hood Mount with Stud, 18ft Fire-Flex Coax with PL-259/FireRing Termination, Mobile Antenna Mounts


Product ID:   PID2799
Status: Out of Stock - Can Not Order At This Time


FireStik (MK-184R) - Stainless Steel Dodge Ram/Dakota Hood Channel Mount Mini-Kit, Hood Mount with Stud, 18ft Fire-Flex Coax with PL-259/FireRing Termination, Mobile Antenna Mounts



Price:
Quantity:









FireStik (MK-184R) - Stainless Steel Dodge Ram/Dakota Hood Channel Mount Mini-Kit, Hood Mount with Stud, 18ft Fire-Flex Coax with PL-259/FireRing Termination


Description:

This kit is the perfect set-up for those wanting to mount an antenna without drilling holes in the exterior of their vehicle. You get a quality stainless steel mount and 18 ft (5.5m) of professional grade Fire-Flex coaxial cable (with FireStik's exclusive Fire-Ring connector) all in one package!

When Dodge redesigned their trucks in 1994, new ways for mounting antennas needed to be found. The mount in this kit is for antenna installations on the 1994 thru 2004 Dodge Ram and Dakota pick-ups (due to body changes made in 2005, this mount will not fit 2005 and newer vehicles). When the hood is open, the fender bolt near the firewall is removed (right or left side) and later reused to bolt the antenna bracket to the under-hood fender lip. All mounting hardware is invisible unless the hood is open. Additional stainless steel sheet metal screws are supplied if additional strength is determined to be needed. The bracket has a pre-determined bend and does not interfere with the closing of the hood. The bracket is 2" (51mm) wide by 4.1" (104mm) long.

Mini-kits give you the freedom to create your own personalized antenna kit. Any of the FireStik standard 3/8"-24 threaded antennas or accessories will screw directly into the antenna stud. Pick any color FireStik, FireStik II, Firefly, Road Pal, Scanner, 2-meter or Mach-10 antenna up to 4' (1.2m) to complete your installation. Each mini-kit contains a FREE microphone hanger.

NOTE: The PL-259 connector (radio end) is supplied in this kit but is not installed on the coax cable. This allows the cable to be routed into the vehicle through a smaller hole. A grommet is supplied. After the connector is placed on the coax, the center conductor MUST be soldered to the PL Connector.


FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.


Features and Specifications:

  • Dodge Ram/Dakota Hood Channel Mount Mini-Kit
  • Stainless Steel Dodge Ram/Dakota Hood Mount
    • Includes FireStik Antenna Stud Mount
    • Includes Stainless Steel Mounting Hardware
    • For 1994 thru 2004 Dodge Ram and Dakota Pick-Ups
  • 18 Ft (5.5m) of Professional Grade Fire-Flex Coaxial Cable
    • Stranded Center Conductor to Maximize Flexibility and Prevent Untimely Breakage
    • Shielding Coverage that Averages 95% to Protect Against RF Leaks and Interference
    • Polyvinyl Center Insulation for Ruggedness and Longevity
    • Performance That Exceeds Mil-Spec Requirements for 50 Ohm RG-58A/U Coax
    • Use On any Single Antenna Installation
    • PL-259/FireRing Termination
    • Supplied Without PL-259 Connector Installed (Radio End) - To Allow Easier Cable Routing
  • UPC 0716414200836
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)- Coax Cable Assembly
  • Manufacturer's Limited Warranty - 2 Year(s)- Stainless Steel Mount
  • Sold: Each


FireStik (MK-184R) - Stainless Steel Dodge Ram/Dakota Hood Channel Mount Mini-Kit

Please Note:
  • This Selection Is FireStik (MK-184R) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each
