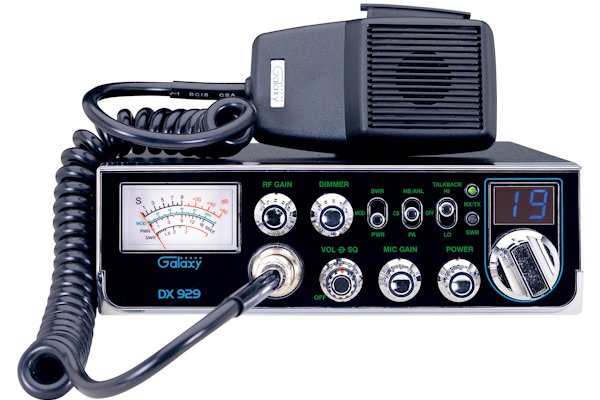

Galaxy (DX 929) - Transceiver With StarLite Face Plate,
Large Meter, Talk Back, High SWR Alert Circuit, AM/PA, 40
Channel
Description:
The DX929 has many impressive features including a
StarLite face plate, a large easy-to-read Galaxy meter,
talkback, and variable power.
Galaxy - Amateur and CB Radios
Features and Specifications:
- Mobile CB Radio
- AM/PA
- 40 Channels
- AM 4 Watt
- 7 1/4" (W) x 9" (D) x 2 1/4" (H) - 3.4
lbs.
- Large, easy-to-read meter with 4 scales
- Signal Strength
- RF Output Power
- SWR Level
- AM Modulation Level
- Color of Meter Lamp: White
- StarLite Faceplate (all lettering backlit)
- Color of Channel Digits: Blue
- Chassis Size: Mid
- Microphone Jack Location: Front
- Talkback with On/Off switch: Hi/Lo
- Variable Power Output
- Automatic SWR Circuit
- High SWR Alert Circuit
- Variable Dimmer Control
- NB and ANL Noise Circuits
- Receive (RF) Gain Control
- Mic Gain Control
- Jacks for PA and External Speaker
- Jack for External Frequency Counter
- Complete Service Manual Online
- Specifications:
- General:
- Model: DX 929
- Channels: 40
- Frequency Range: 26.965 - 27.405 MHz
- Emission: AM
- Frequency Control: Phase-Lock-Loop (PLL)
Synthesizer
- Frequency Stability: 0.001%
- Temperature Range: -30C to +50C
- Antenna Impedance: 50 Ohms
- Speaker Impedance: 8 Ohms
- Antenna Connectors: Standard SO-239 type
- Input Voltage: 13.8V DC
- Size: 7 1/4" (W) x 9" (D) x 2
1/4" (H)
- Weight: 3.4 lbs.
- Meter: Illuminated; RF Output Power, Antenna
SWR, Receive Signal Strength, Modulation %
- Transmitter:
- RF Power Output: AM 4 Watt PEP
- Spurious Emission: > -60 dB
- Audio Distortion: < 5%
- Frequency Response: 300 to 2500 Hz
- Microphone: Dynamic
- Receiver:
- Sensitivity for 10 dB (S+N)/N: AM: < 0.5
microV;
- Squelch Sensitivity: < 0.5 microV
- Selectivity: > -50 dB
- Image Rejection: -60 dB
- Hum and Noise: > -40 dB
- AGC Figure of Merit: 50 mV for 10 dB Change
in Audio Output
- Audio Power Output: 2.5W @ 10% Distortion
- Audio Response: 300 to 2500 Hz
- Contents:
- CB Mobile Galaxy DX 929 Radio
- 4 Pin Dynamic Microphone
- DC Power Cord
- Mounting Bracket with Hardware
- Microphone Hanger with Hardware
- User's Manual
- UPC 0656955109291
- Color: Black
- Manufacturer's Limited Warranty - 2 Year(s)
- Sold: Each
Galaxy (DX 929) - Transceiver With StarLite Face Plate
Please Note:
- This Selection Is Galaxy (DX 929) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
