FireStik (M-2) - Molded Side Mount, with Lug Connections, Mobile Antenna Mounts


Product ID:   PID2756
Status: Out of Stock - Can Not Order At This Time


FireStik (M-2) - Molded Side Mount, with Lug Connections, Mobile Antenna Mounts



Price:
Quantity:









FireStik (M-2) - Molded Side Mount, with Lug Connections


Description:

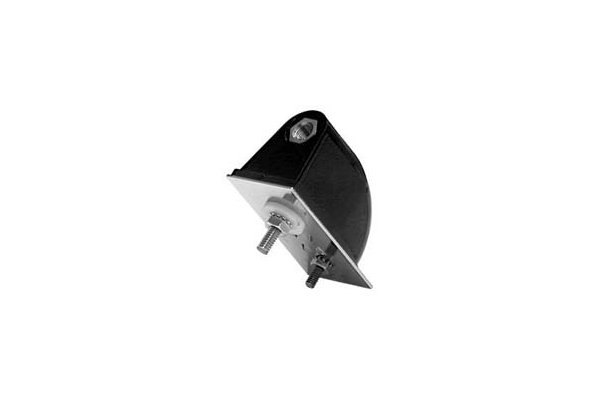

If you want a sleek, stylish looking side mount, you will want to look at the M-2! This mount is specifically designed for use on vertical surfaces. It has an attractive black molded body that looks great on any vehicle. When installed, the coax connectors are concealed on the inside of the vehicle. This mount may be used with single or dual installations. FireStik recommends that it be used with FireStik or FireStik II antennas up to 3' (92cm) or FireFly antennas up to 4' (1.2m). Accepts 3/8"-24 tpi threaded antennas and accessories. This mount comes complete with all of the required mounting hardware, rubber gasket, metal reinforcement plate, nylon insulator and ground terminal lug. If using a spring with a base diameter larger than 0.700", a split lock washer is required between the mount and the spring to ensure proper seating of the spring to the mount surface.

DIMENSIONS
Mounting Surface Area: 3.125" (79mm) x 1.675" (43mm)
Upper Mounting Hole Diameter: 13/32" (10mm)
Lower Mounting Hole Diameter: 13/64" (5mm)
Mounting Holes, Center to Center: 1.50" (38mm)
Outward Protrusion From Mounting Surface: 1.88" (48mm)
Maximum Mounting Surface Thickness: 0.28" (7mm)

May be used with any 3/8"-24 threaded antenna or accessory.


FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.


Features and Specifications:

  • Molded Side Mount
  • Designed For Use on Vertical Surfaces
  • Attractive Black Molded Body
  • May Be Used with Single or Dual Installations
  • For Use with FS II Antennas Up To 3ft In Length or FireFly Antennas Up To 4ft
  • Lug Connections - For Coaxial Cable with a Ring terminal-Spade Connector Termination
  • Standard 3/8"-24 Threads
  • UPC 0716414200614
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each


FireStik (M-2) - Molded Side Mount

Please Note:
  • This Selection Is FireStik (M-2) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
