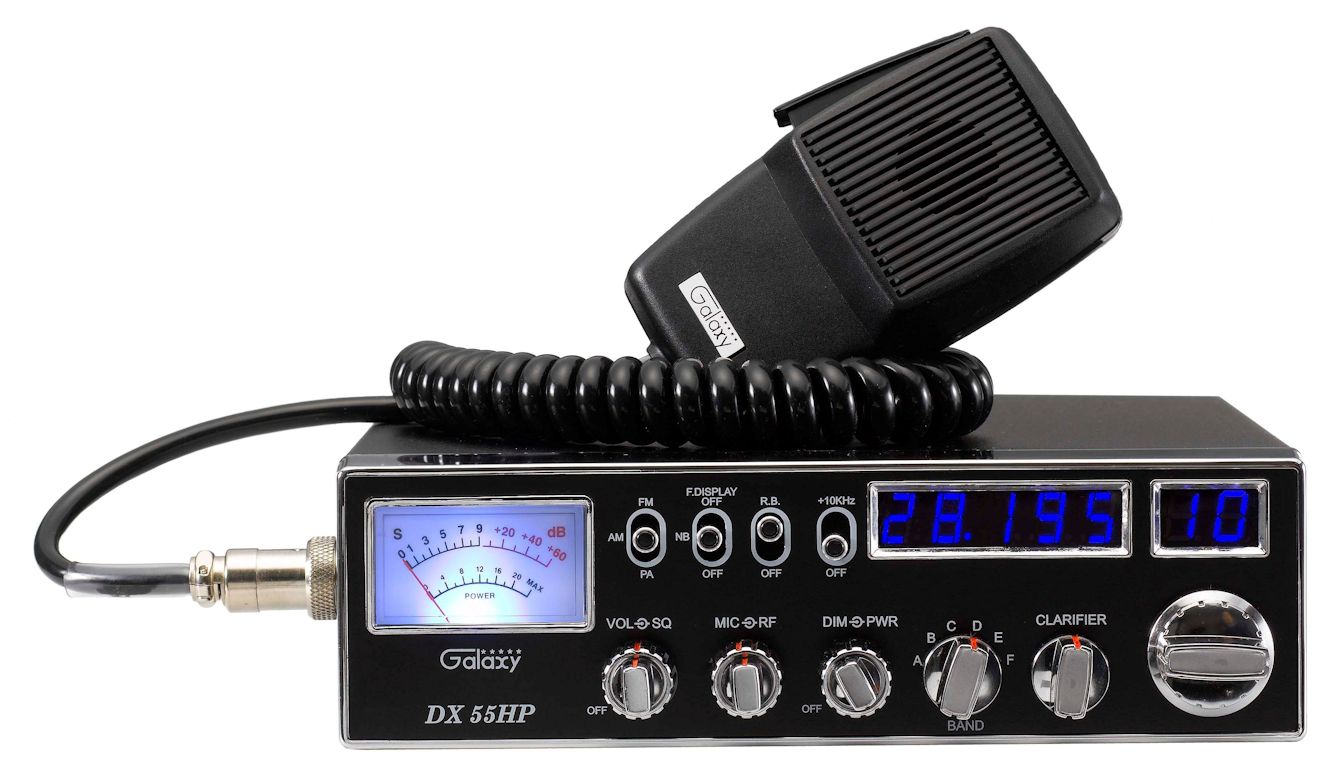

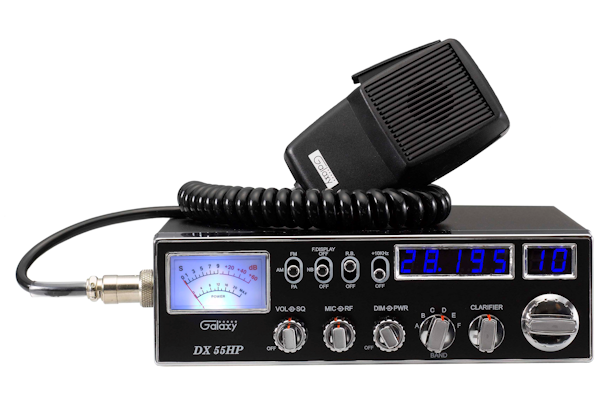

Galaxy (DX 55HP) - AM/FM/PA, Black

Description:

The Galaxy DX 55HP features 40+ watt power output from dual MOSFETs, blue lighting, side mic jack, and a 5-digit frequency counter.

Please note: This radio does not have echo or talkback.

Galaxy - Amateur and CB Radios

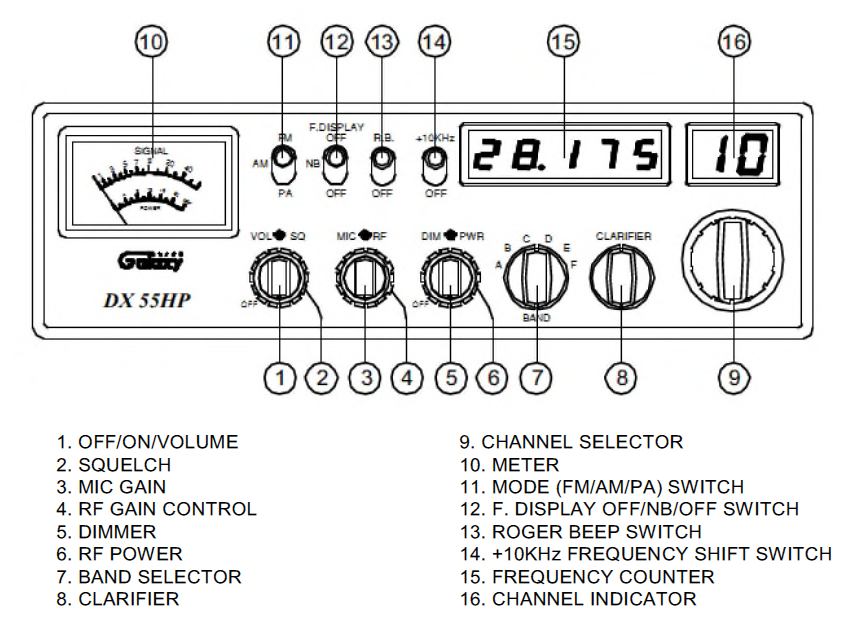

Features and Specifications:

• 10 Meter Mobile Amateur Radio
• AM/FM/PA
• Dual MOSFET Finals - 40+ watts
• Large Galaxy Meter with Scales for Signal Strength and Power Output
• 5-Digit Frequency Counter with On/Off Switch
• 5.0 KHz Clarifier for Receive and Transmit
• +10 KHz Switch
• Roger Beep with On/Off Switch
• Side Mic Jack
• Blue Frequency and Channel Digits
• Variable Dimmer Control
• Vol, Sql, Mic Gain, RF Gain
• Band Selector (6 Bands)
• Variable Power Control
• Noise Blanker
• Blue Lighting for Meter
• Meter Glows Red During Transmit
• Specifications:
  • General:
    • Model: DX 55HP
    • Frequency Range: 28.065 to 28.505 MHz
    • Emission: AM/FM
    • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
    • Frequency Tolerance: 0.005%
    • Frequency Stability: 0.001%
    • Temperature Range: -30C to +50C
    • Antenna Impedance: 50 Ohms
    • Antenna Connectors: Standard SO-239 type
    • Input Voltage: 13.8V DC nominal, 15.9V max, 11.7V min.
    • Size: 2-3/8" (H) x 7-7/8" (W) x 9-1/4" (D) 1/4" (D)
    • Weight: 5 lb.
    • Meter: Illuminated; indicates relative output power, received signal strength
  • Transmitter:
    • Power Output: AM/FM, HIGH 10 watts, LOW 2 watts
    • Modulation: High-and low-level Class B, Amplitude Modulation: AM. Variable capacitance Frequency Modulation: FM.
    • Spurious Emission: 60 dB
    • Frequency Response: AM and FM: 450 to 2500 Hz
    • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
    • Output Impedance: 50 ohms, unbalanced
    • Output Indicators: Meter- shows relative RF output power. Transmit LED glows red when transmitter is in operation
  • Receiver:
    • Sensitivity: AM: 1.0 microV for 10 dB (S+N)/N at greater than 1/2-watt of audio output; FM: 1.0 microV for 20 dB (S+N)/N at greater than 1/2-watt of audio output
    • Selectivity: AM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz
    • Image Rejection: More than 65 dB
    • IF Frequency: AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
    • Adjacent-Channel Rejection: 60 dB AM
    • RF Gain Control: 45 dB adjustable for optimum signal reception
    • Automatic Gain Control (AGC): Less than 10 dB change in audio output for inputs from 10 to 1,000mV
    • Squelch: Adjustable; threshold less than 0.5 microV
    • ANL: Switchable
    • Noise Blanker: RF type
    • Audio Output Power: 4 watts into 8 ohms
    • Frequency Response: 300 to 2800 Hz
    • Built-in Speaker: 8 ohms, round
    • External Speaker (Not Supplied): 8 ohms; disables internal speaker when connected
• Contents:
  • 10 Meter Galaxy DX 55HP Radio
  • 4 Pin Stock Microphone
  • DC Power Cord
  • Mounting Bracket with Hardware
  • Microphone Hanger with Hardware
  • User's Manual
• UPC 0656955500555
• Color: Black
• Manufacturer's Limited Warranty - 2 Year(s)
• Sold: Each
