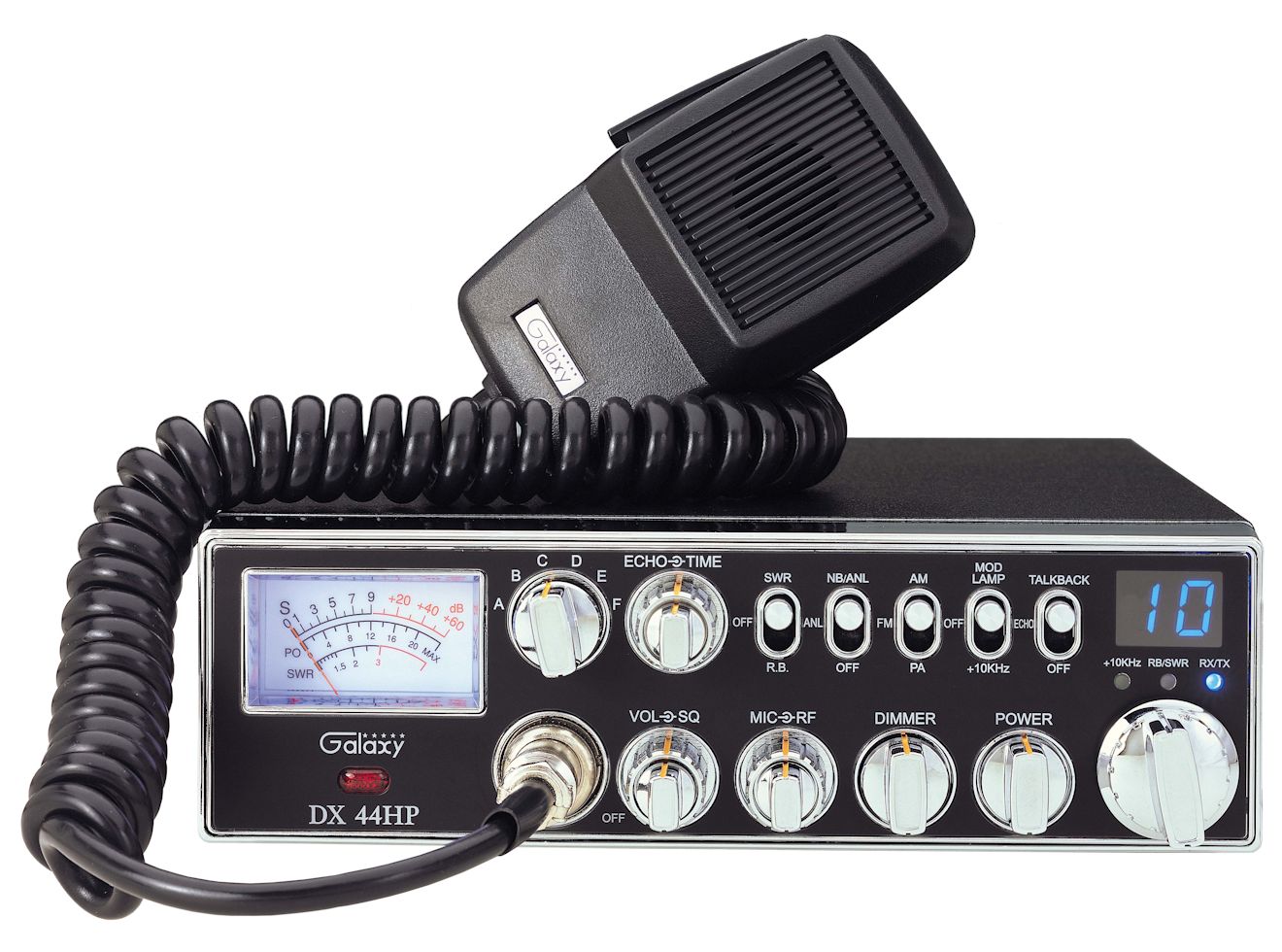

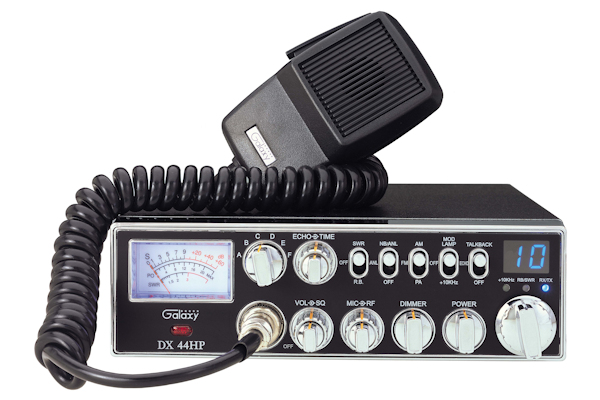

Galaxy (DX 44HP) - AM/FM/PA, Black
Description:
The Galaxy DX 44HP features 40+ watt power output from
dual MOSFETs, blue lighting, a large easy to read Galaxy
meter, a front mic jack, echo with dual controls and
switchable talkback.
Galaxy - Amateur and CB Radios
Features and Specifications:
- 10 Meter Mobile Amateur Radio
- AM/FM/PA
- 40+ watt maximum power output from dual MOSFETs
- Large Galaxy Meter
- Automatic SWR Circuit
- High SWR Alert Circuit
- +10 KHz Circuit
- Roger beep
- Modulation Lamp
- Variable Power Output
- New bezel with Extra Chrome
- Dimmer Pot
- Echo with Dual Controls
- Switchable Talkback
- Blue Lighting
- 6 Bands
- Front Mic Jack
- Specifications:
- General:
- Model: DX 44HP
- Frequency Range: 28.015 to 28.465 MHz
- Emission: AM/FM
- Frequency Control: Phase-Lock-Loop (PLL)
Synthesizer
- Frequency Tolerance: 0.005%
- Frequency Stability: 0.001%
- Temperature Range: -20C to +50C
- Antenna Impedance: 50 Ohms
- Antenna Connectors: Standard SO-239 type
- Input Voltage: 13.8V DC nominal, 15.9V max,
11.7V min.
- Current: Transmit: AM/FM Hi Power - 10A;
Receiver: Squelched, - 0.3A; Maximum Audio
output, - 0.7A.
- Size: 2-3/8" (H) x 7-7/8" (W) x
9-1/4" (D) 1/4" (D)
- Weight: 5 lb.
- Meter: Illuminated; indicates relative output
power, received signal strength and SWR
- Transmitter:
- Power Output: AM/FM - Variable; 10 watt
maximum
- Modulation: Modulation: AM. Variable
capacitance 90% +/- 10%
- Spurious Emission: 50 dB
- Frequency Response: AM and FM: 300 to 2500 Hz
- Microphone: Plug-in dynamic; with
push-to-talk switch and coiled cord
- Output Impedance: 50 ohms, unbalanced
- Output Indicators: Meter- shows relative RF
output power. Transmit LED glows red when
transmitter is in operation
- Receiver:
- Sensitivity: AM: 0.5 microV for 10 dB (S+N)/N
at greater than 1/2-watt of audio output; FM: 1.0
microV for 20 dB (S+N)/N at greater than 1/2-watt
of audio output
- Selectivity: AM/FM: 6 dB @ 3 KHz, 50 dB @ 9
KHz
- Image Rejection: More than 65 dB
- IF Frequency: AM/FM: 10.695 MHz 1st IF, 455
KHz 2nd IF
- Adjacent-Channel Rejection: 60 dB AM
- RF Gain Control: 45 dB adjustable for optimum
signal reception
- Automatic Gain Control (AGC): Less than 10 dB
change in audio output for inputs from 10 to
1,000mV
- Squelch: Adjustable; threshold less than 0.5
microV
- ANL: Switchable
- Noise Blanker: RF type
- Audio Output Power: 4 watts into 8 ohms
- Frequency Response: 300 to 2500 Hz
- Built-in Speaker: 8 ohms, round
- External Speaker (Not Supplied): 8 ohms;
disables internal speaker when connected
- Contents:
- 10 Meter Galaxy DX 44HP Radio
- 4 Pin Stock Microphone
- DC Power Cord
- Mounting Bracket with Hardware
- Microphone Hanger with Hardware
- User's Manual
- UPC 0656955500449
- Color: Black
- Manufacturer's Limited Warranty - 3 Year(s)
- Sold: Each

Galaxy DX 44HP - 10 Meter Amateur Radio

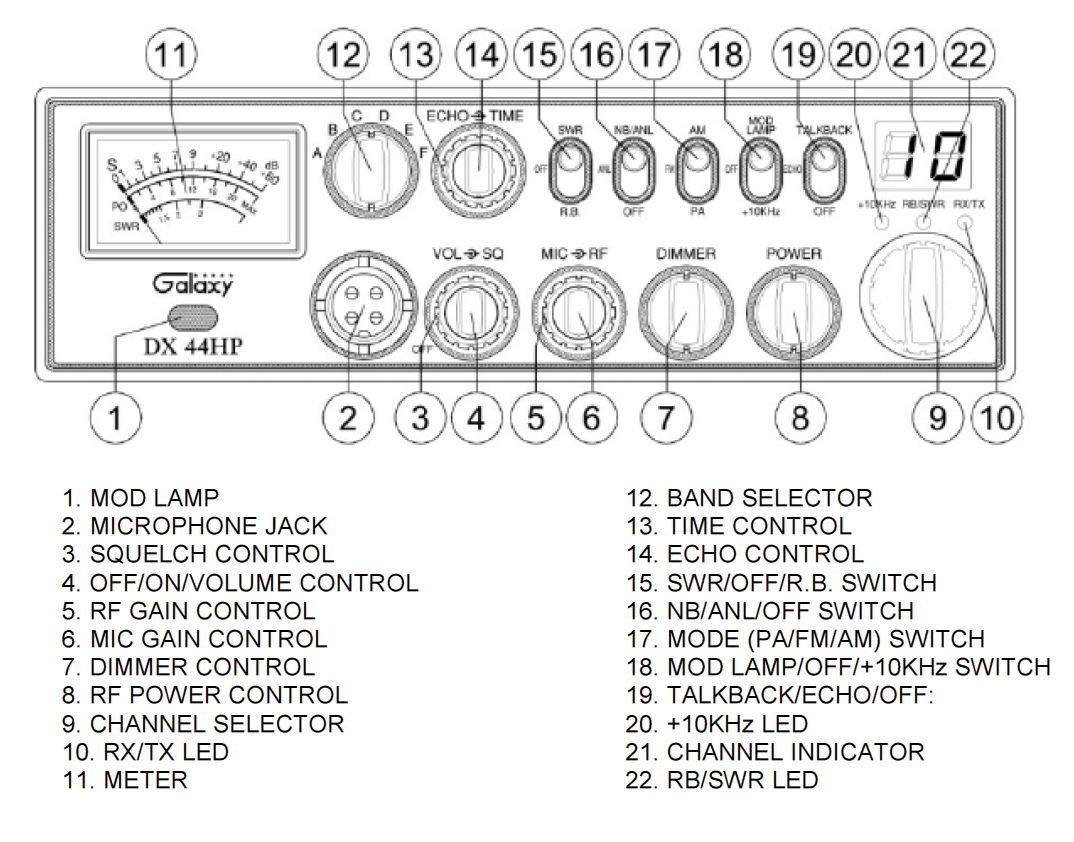

Galaxy DX 44HP - Operation's Guide
The DX
44HP Manual
Galaxy (DX 44HP) - AM/FM/PA
Please Note:
- This Selection Is Galaxy (DX 44HP) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
