Galaxy (DX 2547) - Deluxe Base Station, Frequency Counter, Instant Channel 9/19, Large Meter, Operates on Both AC and DC, AM/USB/LSB/PA, 40 Channel, Base CB Radios


Product ID:   PID0270
Status: Out of Stock - Can Not Order At This Time

Galaxy (DX 2547) - Deluxe Base Station, Frequency Counter, Instant Channel 9/19, Large Meter, Operates on Both AC and DC, AM/USB/LSB/PA, 40 Channel, Base CB Radios



Price:
Quantity:




"Optimum Performance" Upgrade Option:





Galaxy (DX 2547) - Deluxe Base Station, Frequency Counter, Instant Channel 9/19, Large Meter, Operates on Both AC and DC, AM/USB/LSB/PA, 40 Channel


Description:

The DX2547 is a very impressive looking Radio and Galaxy's first base station CB radio. The DX-2547 has all the features of top of the line CB base radios. Amenities like front legs that flip down, which tilt the radio for better viewing; Large Meter and 6 Digit Frequency counter add to the excellence of this Base station Radio.

Galaxy - Amateur and CB Radios


Features and Specifications:

  • CB Base Station Radio
  • AM/USB/LSB/PA, but no FM
  • AM 4 Watt; USB/LSB 12 Watt PEP
  • New Style Midsize Chassis: 4-3/4"H x 11-1/4"W x 13-1/2"D - 12 lb.
  • Operates on both AC and DC
  • Six Digit Frequency Counter
  • Large, easy-to-read meter with 4 scales
    • Signal Strength
    • RF Output Power
    • SWR Level
    • AM Modulation Level
  • Automatic SWR Circuit (no complicated calibration procedure)
  • Talkback Circuit with On/Off Switch and Volume Control
  • Variable Power Output Control
  • Roger Beep with On/Off switch and LED Indicator
  • Galaxy Noise Filter for use on weak signals
  • High SWR Alert LED Indicator
  • Instant Access to Channel 9 or 19
  • Receive Clarifier with On/Off Switch
  • Tone Control for Receive
  • Flip-Down Front Feet
  • LED Channel Indicator
  • Green/Red LED Indicator for RX/TX
  • Headphone Jack on Front Panel
  • Jacks for PA and External Speaker on Rear Panel
  • Noise Blanker with On/Off Switch
  • Automatic Noise Limiter with On/Off Switch
  • Dimmer Control with On/Off Switch
  • Receive Gain Control
  • Mic Gain Control
  • Handheld Dynamic Microphone
  • Front Mic Jack
  • Specifications:
    • General:
      • Model: DX 2547
      • Channels: 40
      • Frequency Range: 26.965 - 27.405 MHz
      • Emission: AM/USB/LSB
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Tolerance: 0.005%
      • Frequency Stability: 0.003%
      • Temperature Range: -30C to +50C
      • Antenna Impedance: 50 Ohms
      • Antenna Connectors: Standard SO-239 type
      • Input Voltage: AC 120V, 60Hz
      • Size: 4-3/4"H x 11-1/4"W x 13-1/2"D
      • Weight: 12 lb.
      • Meter: Illuminated; RF Output Power, Antenna SWR, Receive Signal Strength, Modulation %
    • Transmitter:
      • RF Power Output: AM 4 Watt; USB/LSB 12 Watt PEP
      • Antenna Connector: UHF Type, 50 Ohms
      • AM Modulation: Up to 100%
      • Spurious Emission: Better than -60 dB
      • Unwanted Sideband: Better than -60 dB
    • Receiver:
      • Sensitivity for 10 dB (S+N)/N: AM: < 0.5 microV; USB/LSB: < 0.15 microV
      • Adjacent Channel Rejection: -60dB
      • Image Rejection: -50 dB
      • AGC Figure of Merit: 50 mV for 10 dB Change in Audio Output
      • Audio Power Output: 2.5W @ 10% Distortion
      • Audio Response: 300 to 2500 Hz
  • Contents:
    • CB Base Galaxy DX 2547 Radio
    • 4 Pin Dynamic Microphone
    • AC and DC Power Cords
    • User's Manual
  • UPC 0656955225472
  • Color: Black
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each

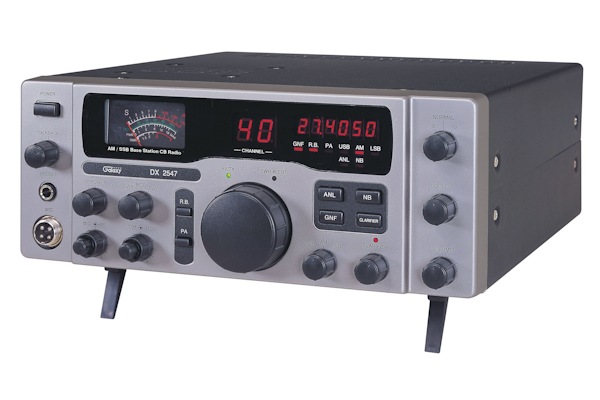

Galaxy DX 2547 - Base CB Radio

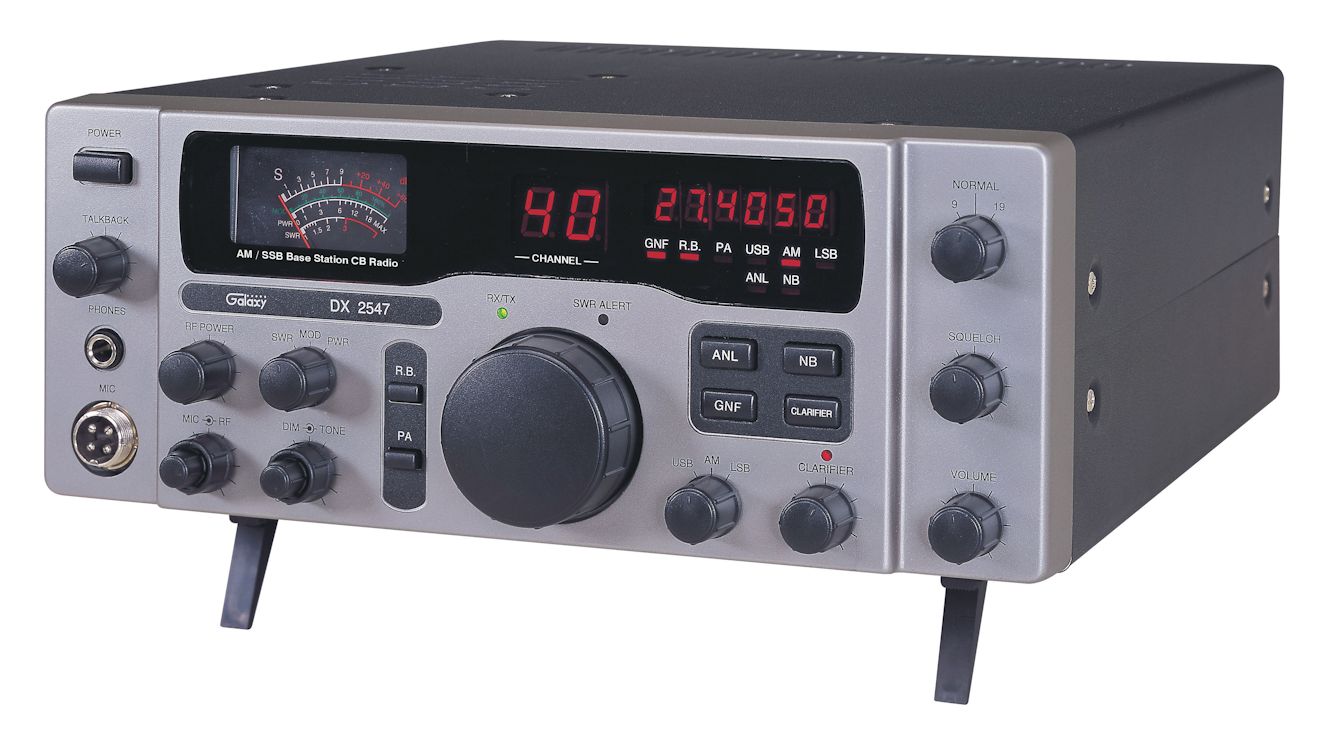

Galaxy DX 2547 - Base CB Radio

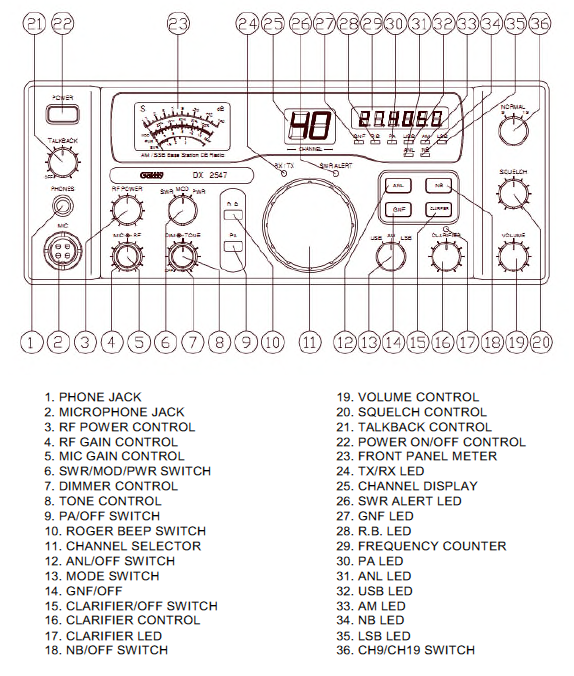

Galaxy DX 2547 - Operation's Guide
Galaxy DX 2547 - Operation's Guide


The DX 2547 Manual


Galaxy (DX 2547) - Deluxe Base Station

Please Note:
  • This Selection Is Galaxy (DX 2547) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
