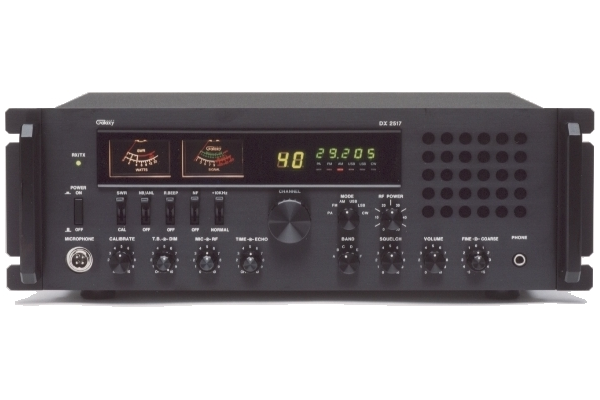

Galaxy (DX 2517) - AM/FM/USB/LSB/CW/PA, Black

Description:

The new DX 2517 Base Radio replaces the DX 11B.

However, it is not simply an upgraded DX 11B. The DX 2517 does not have the familiar main PC board used in the DX 11B and all of our mobile radios. This is the first model using the next generation main board.

ADVANTAGES OF THE NEW BOARD:

• Increased frequency stability for improved sideband operation
• Increased sensitivity on both AM and SSB
• Conventional parts (instead of surface mount parts) are still used for ease of service

OTHER IMPROVEMENTS MADE:

• NOISE FILTER CIRCUIT - A unique Noise Filter circuit increases signal-to-noise ratio on weak signals. This circuit is in addition to the Noise Blanker and Automatic Noise Limiter circuits.
• TALK BACK CIRCUIT - Talk Back volume can be set to any level or turned off altogether.
• DISPLAY - Digits for both channel and frequency displays have been moved forward for improved viewing angle.
• METERING - A modulation scale (for use on AM only) has been added to the signal meter. Markings have been added to the signal, power output and SWR scales to make them easier to use. Also, positioning of the two meters has been reversed for ease of use -- the SWR/POWER meter is now on the left, and the SIGNAL/MODULATION meter is on the right, closer to the frequency display.
• RX/TX INDICATOR - The LED above the power switch is green during receive and red during transmit.

Galaxy - Amateur and CB Radios

Features and Specifications:

• 10 Meter Base Amateur Radio
• AM/FM/USB/LSB/CW/PA - PA Includes Echo
• AM/FM/CW 10 Watt; USB/LSB 25 Watt PEP
• New Main PC Board for Increased Stability and Sensitivity
• Five Digit Frequency Counter
• Two Large, Easy-to-Read Meters
• Meter Scales for Signal, Power Output, SWR and Modulation (AM Only)
• Variable Dimmer Control
• Dual Control Echo
• Red/Green Transmit/Receive LED
• Noise Filter Circuit for Increased Signal-to-Noise Ratio
• "On-Demand" Switchable Talk Back Circuit with Volume Control
• +10 KHz Switch
• Noise Blanker/Automatic Noise Limiter
• Roger Beep
• Mic Gain
• Receive Gain
• Variable Output Power
• 1.5 KHz Clarifier for Receive Only
• 5.0 KHz Clarifier for Receive and Transmit
• Headphone Jack on Front Panel
• Jacks for PA and External Speaker on Rear Panel
• RCA-Type Record Jack Provides Audio Output for a Audio Recording
• Handheld Dynamic Microphone
• Front Mic Jack
• Specifications:
  • General:
    • Model: DX 2517
    • Frequency Range: 28.765 -- 29.205 MHz
    • Emission Types: CW, FM, AM, USB, LSB
    • Frequency Control: Phase-Locked-Loop Synthesizer
    • Frequency Tolerance: 0.005%
    • Frequency Stability: 0.003%
    • Temperature Range: -30C to 55C
    • Antenna Impedance: 50 Ohms
    • Antenna Connectors: Standard SO-239 type
    • Input Voltage: AC 120V, 60Hz
    • Dimensions: 19"W x 6-1/2"H x 14"D (with Handles)
    • Dimensions: 16-1/2"W x 6-1/2"H x 13-1/4"D (Handles Removed)
    • Weight: 21 Pounds (Shipping Weight -- 29 Pounds)
    • Meter #1: RF Output Power / Antenna SWR
    • Meter #2: Received Signal Strength / MOD %
  • Transmitter:
    • RF Power Output: 25W: USB/LSB 10W: AM/FM/CW
    • Antenna Connector: UHF Type, 50 Ohms
    • AM Modulation: Up to 100%
    • Clarifier Range: +/- 5 KHz Transmit and Receive; +/- 1.5 KHz Receive Only
    • Spurious Emissions: -60dB
    • Carrier Suppression: 60dB
  • Receiver:
    • Sensitivity for 10dB S/N: AM 0.5uV
    • Sensitivity for 20dB S/N: FM 0.5uV
    • Sensitivity for 10dB S/N: USB/LSB 0.3uV
    • Adjacent Channel Rejection: -60dB
    • Image Rejection: -50 dB
    • AGC Figure of Merit: SSB/AM: 80dB for 50mV for 10dB change in Audio Output
    • Audio Output Power @ 10% THD: 2.5W
• Contents:
  • 10 Meter DX 2517 Base Station Radio
  • 4 Pin Low Impedance Dynamic Microphone
  • AC Power Cord
  • User's Manual
• UPC 656955225175
• Color: Black
• Manufacturer's Limited Warranty - 2 Year(s)
• Sold: Each
