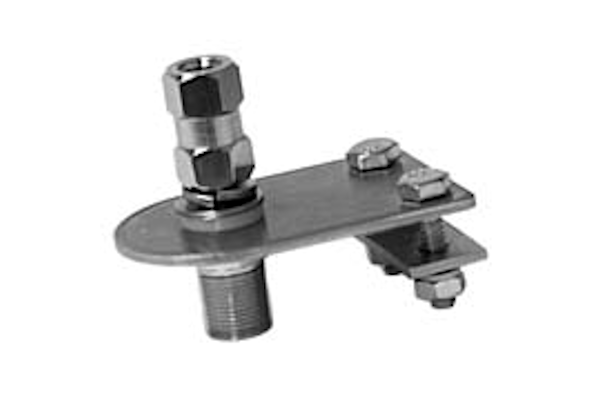

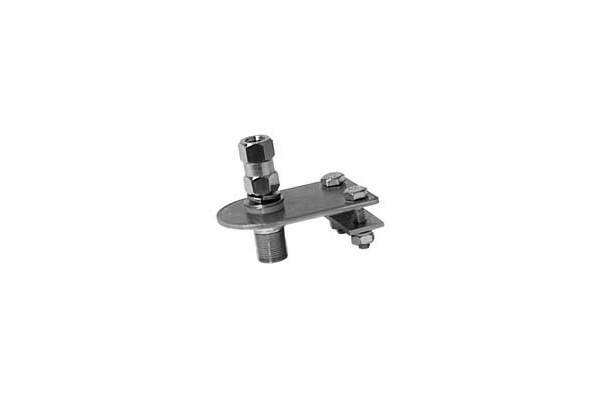

FireStik (SS-J4A) - Stainless Steel Jeep Fender Mount, with SO-239 Base Antenna Stud Mount, Mobile Antenna Mounts


Product ID:   PID2516
Status: Out of Stock - Can Not Order At This Time


FireStik (SS-J4A) - Stainless Steel Jeep Fender Mount, with SO-239 Base Antenna Stud Mount, Mobile Antenna Mounts



Price:
Quantity:









FireStik (SS-J4A) - Stainless Steel Jeep Fender Mount, with SO-239 Base Antenna Stud Mount


Description:

This mount was designed around the Jeep Wranglers body style (97-99). The mount allows the antenna to be mounted on either the left or right side of the vehicle. The stainless steel mount and support bracket are made from 12 gauge (0.109") stainless steel. After the mount is installed, there will not be any visible mounting holes. All mounting hardware (also stainless steel) is hidden under the vehicles hood. Even though there were no installations on earlier model years, the mounting concept is very basic and the probability of these mounts working on pre-1997 Jeeps is high. Both mounts are complete with a standard 3/8"-24 threaded antenna mounting stud. If the vehicle is being used over severe terrain, the mount should be moved forward (closer to the fender bolt) for added stability. The design of the Jeep fender leaves a large portion of the fender unsupported near the windshield.

The SS-J4A has a SO-239 stud mount making it compatible with all coax cables that are terminated with standard UHF PL-259's.

The upper bracket is 2" (51mm) wide and 3" (76mm) long. A slight angle on the inside edge of the bracket follows the angle of the hood line. To mount the bracket, two 1/4" holes need to be drilled in the inner fender lip. A 12 gauge, 2" x 3/4" support plate installs on the bottom edge of the fender to add to the strength of the mount. FireStik supplies you with 1/4-20" stainless steel bolts, nuts and washers to secure the bracket to the vehicle.

Note: The rearward part of the fender on newer Jeeps does not have the same support that was found in earlier models. On these vehicles FireStik recommends that the bracket be mounted at least 8-inches (20cm) forward of the rear edge of the fender where it has sufficient support. If this is not followed, or if the rear part of the fender is not given additional support, the fender, dependent upon the antenna size, will flex from any whipping action of the antenna.

May be used with any 3/8"-24 threaded antenna or accessory.


FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.


Features and Specifications:

  • Jeep Fender Mount
  • Stainless Steel
  • Designed Around the Jeep Wranglers Body Style (97-99)
  • For Use with Antennas Up To 4ft In Length
  • Mount the Antenna on Either the Left or Right Side of the Vehicle
  • SO-239 Base Antenna Stud Mount - For Coaxial Cable with a PL-259 Connector
  • Standard 3/8"-24 Threads
  • UPC 0716414201154
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each


FireStik (SS-J4A) - Stainless Steel Jeep Fender Mount

Please Note:
  • This Selection Is FireStik (SS-J4A) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
