FireStik (SS-294A) - Stainless Steel Pick-Up Over Rail Stakehole Mount, with SO-239 Base Antenna Stud Mount, Mobile Antenna Mounts


Product ID:   PID0247
Status: Out of Stock - Can Not Order At This Time


FireStik (SS-294A) - Stainless Steel Pick-Up Over Rail Stakehole Mount, with SO-239 Base Antenna Stud Mount, Mobile Antenna Mounts



Price:
Quantity:

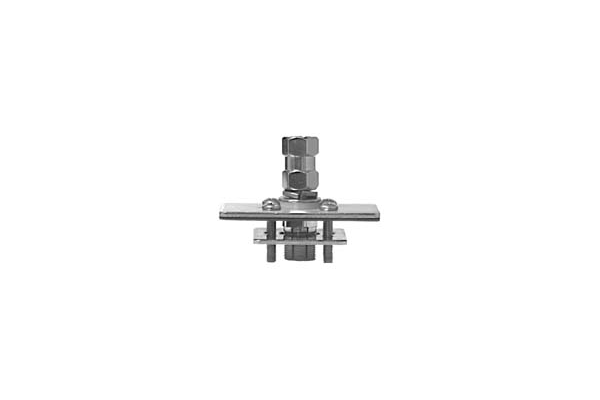

FireStik (SS-294A) - Stainless Steel Pick-Up Over Rail Stakehole Mount, with SO-239 Base Antenna Stud Mount Mount


Description:

This stainless steel mount locks into any of the stake hole pockets along the edge of a pick-up truck bed. There is no need to drill any holes in the vehicle. The mount can be used on bed rails with protective covers (such as those on the newer Ford Super-Duty trucks). Because of the stud mount configuration on this mount, it can only be used on trucks where there is inside access to the stake hole pocket (from side or bottom) for the coaxial cable to be routed to the mount. In some cases, this might require that the coax be routed through an opening that is too small for a PL-259 connector to pass. In those cases, the PL-259 will need to be installed after the coax has been routed. The mount will easily support heavy-duty antennas up to 4 feet (1.2m) in length.

Note: With the exception of being able to correct for slight bed rail tilt using gasket material or a fabricated wedge of sorts, this mount does not contain angular adjustments. The top of the bed rail needs to be close to the horizontal plane to prevent the antenna from leaning inward or outward when viewed from the front or back of the vehicle.

Important Consideration: When mounted in either of the stake hold pockets directly behind the vehicle cab, antennas that are shorter than 4-feet will experience substantial reflection from the metallic corners of the cab. Antennas shorter than 4-feet will, in most likelihood, be difficult, if not impossible, to tune to a satisfactory SWR.

The mount comes complete with FireStik's world famous heavy-duty SO-239 antenna stud. Standard PL-259 terminated coaxial cables are to be used with this mount. FireStik recommends the use of 18ft (5.5m) RG-58A/U high quality coaxial cable with all of their fiberglass antennas. Coaxial cable assembly model K-8A would be the recommended cable to use with this mount when using a single antenna or, model K-9A if running twin (co-phased) antennas.

If you do not have inside access to the stake hole pocket, FireStik also manufactures a mount and coaxial cable mini-kit for this type of installations. The mini-kit features the low-profile FireStik exclusive FireRing terminated coaxial cable.

May be used with any 3/8"-24 threaded antenna or accessory.


FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.


Features and Specifications:

  • Pick-Up "Over Rail" Stakehole Mount
  • Stainless Steel
  • Locks Into any of the Stake Hole Pockets Along the Edge of a Pick-Up Truck Bed
  • For Use with Antennas Up To 4ft In Length
  • Mount the Antenna on Either the Left or Right Side of the Vehicle
  • SO-239 Base Antenna Stud Mount - For Coaxial Cable with a PL-259 Connector
  • Standard 3/8"-24 Threads
  • UPC 0716414201161
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each


FireStik (SS-294A) - Stainless Steel Pick-Up Over Rail Stakehole Mount

Please Note:
  • This Selection Is FireStik (SS-294A) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
