FireStik (SS-184A) - Stainless Steel Dodge Ram/Dakota Hood Mount, with SO-239 Base Antenna Stud Mount, Mobile Antenna Mounts


Product ID:   PID0244
Status: Out of Stock - Can Not Order At This Time


FireStik (SS-184A) - Stainless Steel Dodge Ram/Dakota Hood Mount, with SO-239 Base Antenna Stud Mount, Mobile Antenna Mounts



Price:
Quantity:









FireStik (SS-184A) - Stainless Steel Dodge Ram/Dakota Hood Mount, with SO-239 Base Antenna Stud Mount


Description:

The primary use for the SS-184 (NOT SHOWN) stainless steel mount is for antenna installation on the 1994 thru 2004 Dodge Ram and Dakota pick-ups (due to body changes made in 2005, this mount will not fit 2005 and newer vehicles). When the hood is open, the fender bolt near the firewall is removed (right or left side) and later reused to bolt the antenna bracket to the under-hood fender lip. All mounting hardware is invisible unless the hood is open. Additional stainless steel sheet metal screws are supplied if additional strength is determined to be needed. The bracket has a pre-determined bend and does not interfere with the closing of the hood. The bracket is 2" (51mm) wide by 4.1" (104mm) long. Please Note: Due to the close quarters, the stud requires crimp-on coaxial connectors.

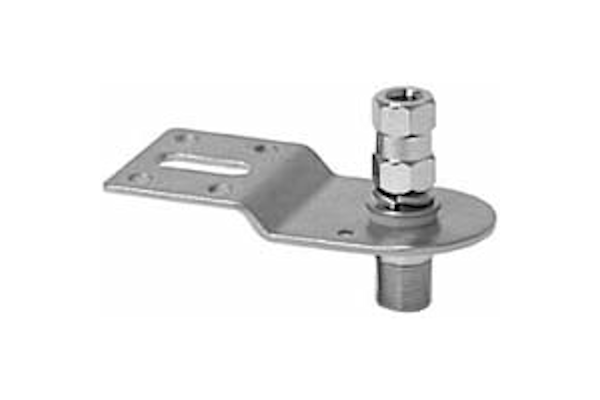

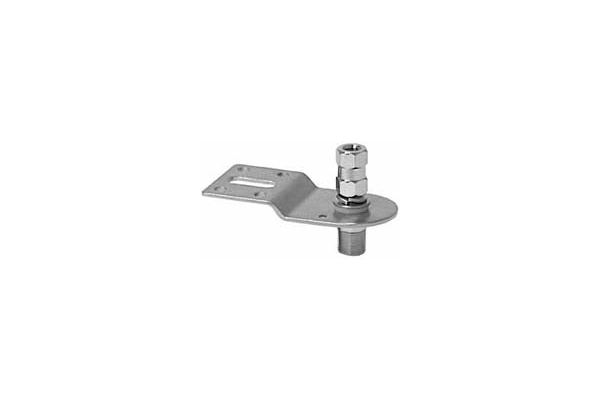

The SS-184A (SHOWN) contains the same bracket as the SS-184. The difference is the SO-239 base stud mount for screw-on coax connection. There isn't enough clearance on the Dodge trucks to allow for this stud but, this mount works very well as a universal flat mount for bumpers, pick-up bed rails, etc. Either mount is rated for antennas up to 4' (1.2m) in length.

May be used with any 3/8"-24 threaded antenna or accessory.


FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.


Features and Specifications:

  • Dodge Ram/Dakota Hood Mount
  • Works Very Well as a Universal Flat Mount for Bumpers, Pick-Up Bed Rails, Etc.
  • Will Work For 1994 thru 2004 Dodge Ram and Dakota Pick-Ups if Antenna Stud Is Changed to Type With Crimp-On Coaxial Connectors
  • Stainless Steel
  • For Use with Antennas Up To 4ft In Length
  • SO-239 Base Antenna Stud Mount - For Coaxial Cable with a PL-259 Connector
  • Standard 3/8"-24 Threads
  • UPC 0716414200690
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each


FireStik (SS-184A) - Stainless Steel Dodge Ram/Dakota Hood Mount

Please Note:
  • This Selection Is FireStik (SS-184A) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
