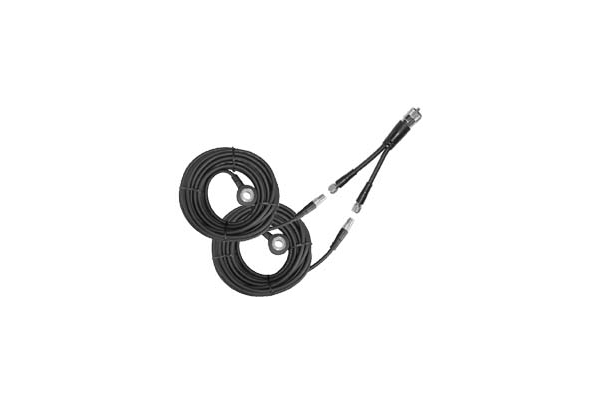

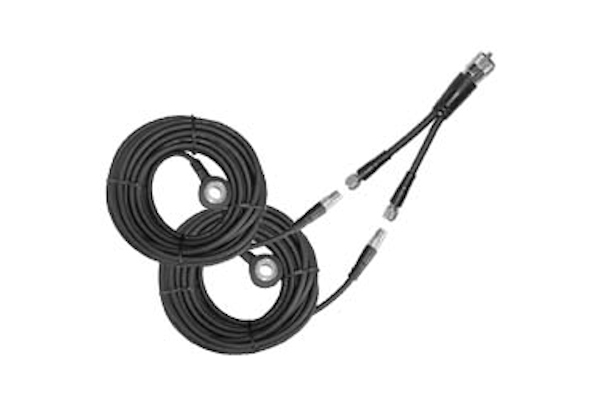

FireStik (MU-9R18) - EZ-Install Coaxial Cable Assembly For Dual Antenna Installations, 18ft Leads, FireRing to Mini-UHF Connectors

Description:

Since the introduction of FireStik's exclusive FireRing connectors in 1995, users have ask FireStik over and over, "When are you going to make FireRings available on co-phase harnesses?". Okay ... so here it is! In order to make the co-phase harnesses as user friendly as possible, they needed to make them easy to route. Since it would require a 1" hole to pass the FireRing through, FireStik had to come up with a better idea. Ergo ... reverse thinking and mini-UHF connectors. Most co-phase harnesses are routed from the radio to the mounts. If you wanted the convenience of PL-259 connectors, you either had to drill 3/4" holes or have the knowledge and tools to install PL-259 connectors once the cable was routed. Well ... you can forget all of that with this new co-phase harness.

With this assembly, you run each leg of the co-phase harness from each mount to the radio. Since the radio end of these cables are terminated with female mini-UHF connectors, they will pass through a 7/16" (11mm) hole. After both leads are at the radio, you simply attach the "Y" connector to the ends and attach it to the radio. No coax to process ... no soldering joints to complete and no tools needed. And best of all ... you get all of the benefits of FireStik's exclusive FireRing connectors.

For those of you who know FireStik, you know the they would never compromise the quality of the coaxial cable for the conveniences found within this unique assembly. While they are best known for our hi-performance antennas, the antennas can not be expected to perform to their maximum potential if the coaxial cable is unable to deliver what the radio has to offer. As with all of their cable assemblies, they are as picky with what lies between the connectors as we are with the connectors themselves.

Note: FireRing terminations require K-4R stud mounts that include 1.25" long bolts. Mounts that have K-4 stud mounts can be adapted for use with the FireRing termination by replacing the 1" bolt with a 1.25" bolt and elimination of the ring terminal, one flat washer and one nylon washer.

FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.

Features and Specifications:

• Fire-Flex Coaxial Cable Assembly
  • Stranded Center Conductor to Maximize Flexibility and Prevent Untimely Breakage
  • Shielding Coverage that Averages 95% to Protect Against RF Leaks and Interference
  • Polyvinyl Center Insulation for Ruggedness and Longevity
  • Performance that Exceeds Mil-Spec Requirements for 75 Ohm RG-59A/U Coax
• Low-Profile Fire-Ring and Studs/"EZ-Install" Female Mini-UHF Connectors
• Mini-UHF/PL-259 "Y" Adapter
• RG-59A/U
• 18 Foot Long Leads
• For Dual Antenna Installations
• UPC 0716414201383
• Color: Black
• Manufacturer's Limited Warranty - 1 Year(s)
• Sold: Each

FireStik (MU-9R18) - EZ-Install Coaxial Cable Assembly For Dual Antenna Installations
