FireStik (MK-M2) - Molded Antenna Side Mount Mini-Kit, Molded Side Mount, 18ft Fire-Flex Coax with PL-259/Ring Terminal-Spade Connector Termination, Mobile Antenna Mounts


Product ID:   PID0235
Status: Out of Stock - Can Not Order At This Time


FireStik (MK-M2) - Molded Antenna Side Mount Mini-Kit, Molded Side Mount, 18ft Fire-Flex Coax with PL-259/Ring Terminal-Spade Connector Termination, Mobile Antenna Mounts



Price:
Quantity:

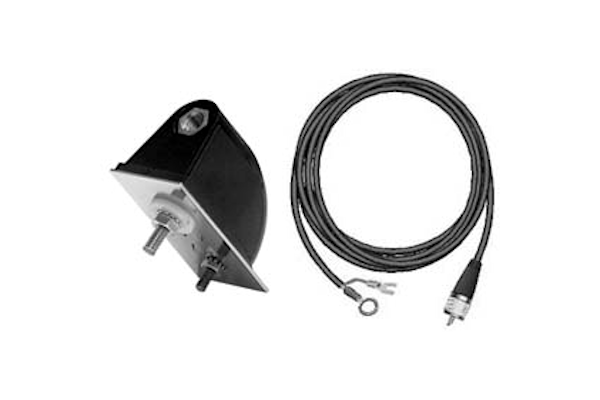

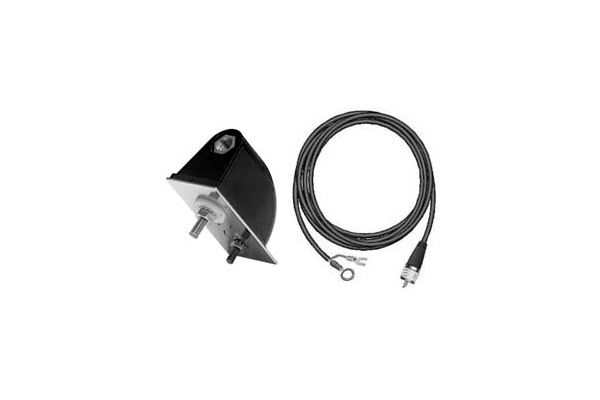

FireStik (MK-M2) - Molded Antenna Side Mount Mini-Kit, Molded Side Mount, 18ft Fire-Flex Coax with PL-259/Ring Terminal-Spade Connector Termination


Description:

If you are looking for a side mount with some style, than this is the set up for you. This kit includes the molded side mount and 18 ft (5.5m) of professional grade Fire-Flex coaxial cable. Mount includes rubber gasket and steel backer-plate.

When installed, the coax connectors are concealed on the inside of the vehicle (requires one 13/32" (10mm) and one 13/64" (5mm) mounting hole). FireStik recommends that it be used with FireStik and FireStik II antennas up to 3' (92cm) or FireFly and RoadPal antennas up to 4' (1.2m). The actual mounting surface is approximately 3.125" (79mm) x 1.675" (43mm). Outward protrusion is about 1.875" (48mm)

If adding a spring with a base diameter larger than 0.700", a split lock washer is required between the mount and the spring to ensure proper seating of the spring to the mount surface.

Mini-kits give you the freedom to create your own personalized antenna kit. Any of the FireStik standard 3/8"-24 threaded antennas or accessories will screw directly into the antenna stud. Pick any color FireStik, FireStik II, Firefly, Road Pal, Scanner, 2-meter or Mach-10 antenna up to 4' (1.2m) to complete your installation. Each mini-kit contains a FREE microphone hanger.


FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.


Features and Specifications:

  • Side Mount Mini-Kit
  • Molded Side Mount
    • Designed for Use on Vertical Surfaces
    • Includes Mounting Hardware, Rubber Gasket, Reinforcement Plate, Nylon Insulator and Ground Terminal Lug
    • FS II Antennas Up to 3' Tall - FireFly Antennas up to 4' Tall
  • 18 Ft (5.5m) of Professional Grade Fire-Flex Coaxial Cable
    • Stranded Center Conductor to Maximize Flexibility and Prevent Untimely Breakage
    • Shielding Coverage that Averages 95% to Protect Against RF Leaks and Interference
    • Polyvinyl Center Insulation for Ruggedness and Longevity
    • Performance That Exceeds Mil-Spec Requirements for 50 Ohm RG-58A/U Coax
    • Use On any Single Antenna Installation
    • PL-259/Ring Terminal-Spade Connector Termination
  • UPC 0716414201437
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each


FireStik (MK-M2) - Molded Antenna Side Mount Mini-Kit

Please Note:
  • This Selection Is FireStik (MK-M2) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
