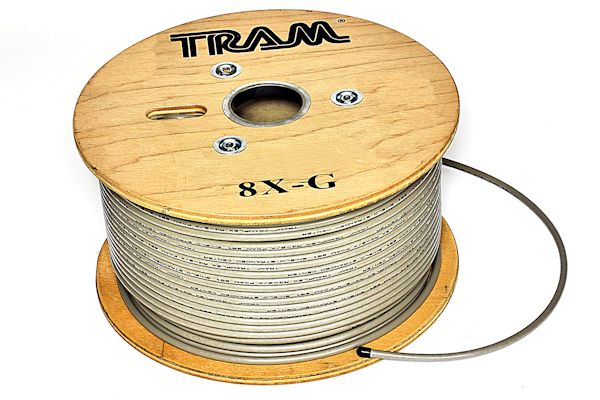

Tram (8X-G-500) - RG-8X Cable, Gray, By The Foot, Coaxial Cable


Product ID:   PID2267
Status: Available To Order

Tram (8X-G-500) - RG-8X Cable, Gray, By The Foot, Coaxial Cable



Price:
Quantity:




Purchase Options





Tram (8X-G-500) - RG-8X Cable, Gray, By The Foot


Description:

RG-8X is a type of coaxial cable often used for amateur radio. The cable has a characteristic impedance of 50 Ohm. RG-8X is a "thinner" version with the electrical characteristics of RG-8U.

Most two-way radio communication systems, such as marine, CB radio, amateur, police, fire, WLAN antennas etc., are designed to work with a 50 Ohm cable.

RG-8X cable is to be used in a "single antenna" installation only.


Tram-Browning: Quality Workmanship and Materials - Exceptional Performance and Function - Expert Engineering


Features and Specifications:

  • RG-8X Coaxial Cable
  • Bare Copper Braid
  • 95% Shield
  • Stranded Bare Copper Center Conductor
  • 50 Ohms
  • Color: Gray
  • Sold: By The Foot


RG-8X-G Coaxial Cable Specifications:


Attenuation
Frequency
MHz 		Attenuation
dB/100 ft. 		Attenuation
dB/100 m
100 4.05 13.30
200 5.79 19.00
400 8.38 27.50
700 11.43 37.50
900 13.11 43.00

Specifications

Shield Imp. Velocity Bare Copper Braid 95%, 50 Ohms, 78% VOP
Center Conductor Stranded Bare Copper, 19/29 ga (0.011") (19/0.287mm)
Polyethylene Insulation Foam, 0.155"" (3.94mm)
Capacitance 25.0 pF/ft., 85.00 pF/m
Jacket 0.242" (6.15mm), Gray PVC


Tram (8X-G-500) - RG-8X Cable

Please Note:
  • This Selection Is Tram (8X-G-500) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: By The Foot





Inventory Status: Available To Order
