Galaxy (DX 98VHP) - AM/USB/LSB/PA, StarLite Faceplate, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID2250
Status: Out of Stock - Can Not Order At This Time

Galaxy (DX 98VHP)  - AM/USB/LSB/PA,  StarLite Faceplate, Black, 10 Meter Amateur Mobile Radios



Price:
Quantity:





"Optimum Performance" Upgrade Option:

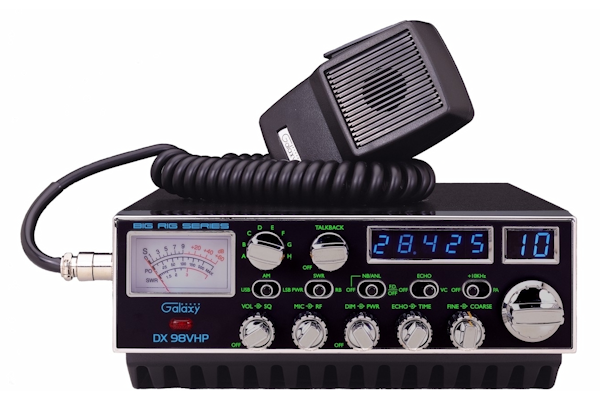

Galaxy (DX 98VHP) - AM/USB/LSB/PA, StarLite Faceplate, Black


Description:

The Galaxy 98VHP features 200 watt maximum power output from eight IRF520 MOSFETs, blue LEDs for frequency and channel readouts, a large easy to read meter with scales indicating power output, SWR and incoming signal strength, a side mic jack, and the StarLite faceplate.

For use of the Galaxy DX 98VHP in a base station application, Ranger recommends at minimum a 50 Amp power supply.

Galaxy - Amateur and CB Radios


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • AM/USB/LSB/PA, but no FM
  • Eight IRF520 MOSFETs - 200 watts
  • Large Galaxy Meter with Scales for Signal Strength, Power Output, and SWR level
  • New power cord using an "SY" type quick disconnect, 8 gauge wire and an AGU gold plated 50 amp fuse
  • New larger bottom heatsink with two internal fans
  • StarLite Faceplate (all printing is backlit)
  • 5-Digit Frequency Counter with On/Off Switch
  • Fine/Coarse Clarifier Adjustment
  • +10 KHz Button
  • Roger Beep with On/Off Switch
  • Side Mic Jack - not a front mic jack
  • Blue Frequency and Channel Digits
  • Talkback with On/Off Switch
  • Dual Control Echo and Voice Changer, but no Robot
  • Automatic SWR Circuit
  • Variable Dimmer Control
  • Vol, Sql, Mic Gain, RF Gain
  • Band Selector (8 Bands)
  • Variable Power Control
  • Noise Blanker and Automatic Noise Limiter
  • Blue Lighting for Meter
  • Red modulation LED under the meter, but no modulation scale on the meter
  • Specifications:
    • General:
      • Model: DX 98VHP
      • Frequency Range: 28.315 - 28.755 MHz
      • Emission: AM/USB/LSB
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Stability: 0.001%
      • Temperature Range: -30C to +50C
      • Antenna Impedance: 50 Ohms
      • Antenna Connectors: Standard SO-239 type
      • Input Voltage: 13.8V DC Normal @30 AMP
      • Size: 7 7/8" (W) x 3 1/8" (H) x 10 3/4" (D)
      • Weight: 10 lb.
      • Meter: Illuminated; indicates relative output power, received signal strength, and SWR level
    • Transmitter:
      • RF Power Output: AM/FM: 10-50 watts; USB/LSB: 200 watts PEP
      • Current Drain: AM: 25 Amps; SSB: 40 Amps
      • Spurious Emission: -50 dB
      • Unwanted Sideband: -50 dB
      • Audio Distortion: 10%
      • Frequency Response: 300 to 2500 Hz
      • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
      • Clarifier Range: Coarse: +/- 6.0KHz; Fine: +/- 1.0KHz
    • Receiver:
      • Sensitivity for 10 dB (S+N)/N: AM: < 0.5 microV; USB/LSB: < 0.25 microV
      • Squelch Sensitivity: < 0.5 microV
      • Selectivity: -55 dB
      • Image Rejection: -50 dB
      • AGC Figure of Merit: 100 mV for 10 dB Change in Audio Output
      • Audio Power Output: 2.5W @ 10% Distortion
      • Audio Response: 300 to 2500 Hz
  • Contents:
    • 10 Meter Galaxy DX 98VHP Radio
    • 4 Pin Stock Microphone
    • DC Power Cord
    • Mounting Bracket with Hardware
    • Microphone Hanger with Hardware
    • User's Manual
  • UPC 0656955100984
  • Color: Black
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each


Galaxy DX 98VHP - 10 Meter Amateur Radio
Galaxy DX 98VHP - 10 Meter Amateur Radio


Galaxy DX 98VHP - Operation's Guide
Galaxy DX 98VHP - Operation's Guide


The DX 98VHP Manual


Galaxy (DX 98VHP) - AM/USB/LSB/PA

Please Note:
  • This Selection Is Galaxy (DX 98VHP) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
