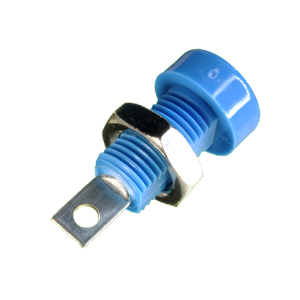

Johnson/Cinch (108-0910-001) - Banana Jack, Insulated
Solder Terminal, 15 Amp, Blue
Description:
This banana jack is the female connector which accepts a
banana plug -- both together are frequently used to make
hassle-free connections to either electronic test or
audio equipment.
The banana jack is panel mounted.
Johnson/Cinch - Connectivity Solutions
Features and Specifications:
- Insulated Banana Jack
- Keyed Mounting with Double Flats
- Accepts Up to 16 Gauge Wire
- Nylon UL Approved for Self Extinguishing
- Contact: Formed Brass
- Finish: Bright Tin
- Body: Nylon 6/6
- Hardware: Nickel Plated Nut
- Body Thread Stripping Torque: 6.0 Lbs. in.

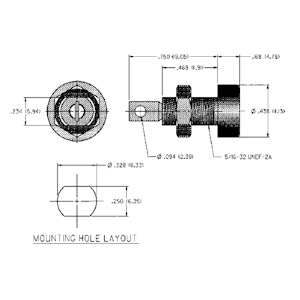

- Panel Thickness: Up to .343 in.
- Length: 23.83mm/0.938 in.
- Current: 15 Amps
- Voltage: 7 kV
- Contact Resistance: 0.010 Ohms Maximum
- Contact-To-Panel: 2.4 pF nominal
- Color: Blue
- Sold: Each
Johnson/Cinch (108-0910-001) - Banana Jack
Please Note:
- This Selection Is Johnson/Cinch (108-0910-001)
ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
