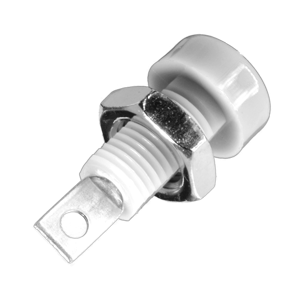

Johnson/Cinch (108-0901-001) - Banana Jack, Insulated Solder Terminal, 15 Amp, White, Connectors


Product ID:   PID2148
Status: Available To Order


Johnson/Cinch (108-0901-001) - Banana Jack, Insulated Solder Terminal, 15 Amp, White, Connectors



Price:
Quantity:









Johnson/Cinch (108-0901-001) - Banana Jack, Insulated Solder Terminal, 15 Amp, White


Description:

This banana jack is the female connector which accepts a banana plug -- both together are frequently used to make hassle-free connections to either electronic test or audio equipment.

The banana jack is panel mounted.


Johnson/Cinch - Connectivity Solutions


Features and Specifications:

  • Insulated Banana Jack
  • Keyed Mounting with Double Flats
  • Accepts Up to 16 Gauge Wire
  • Nylon UL Approved for Self Extinguishing
  • Contact: Formed Brass
  • Finish: Bright Tin
  • Body: Nylon 6/6
  • Hardware: Nickel Plated Nut
  • Body Thread Stripping Torque: 6.0 Lbs. in.
  • Panel Thickness: Up to .343 in.
  • Length: 23.83mm/0.938 in.
  • Current: 15 Amps
  • Voltage: 7 kV
  • Contact Resistance: 0.010 Ohms Maximum
  • Contact-To-Panel: 2.4 pF nominal
  • Color: White
  • Sold: Each


Johnson/Cinch (108-0901-001) - Banana Jack

Please Note:
  • This Selection Is Johnson/Cinch (108-0901-001) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Available To Order
