FireStik (MK-J4R) - Stainless Steel Jeep Hood Channel Mount Mini-Kit, Jeep Fender Mount with Stud, 18ft Fire-Flex Coax with PL-259/FireRing Termination

Description:

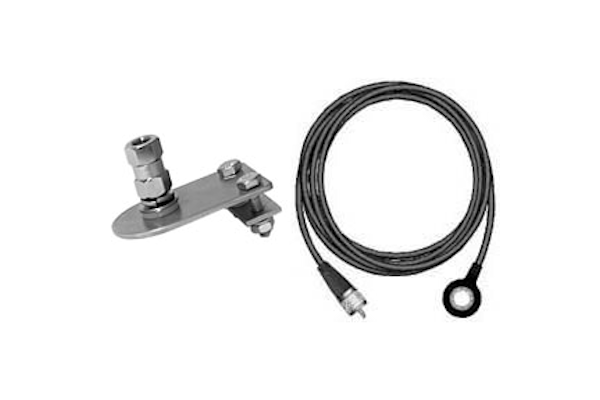

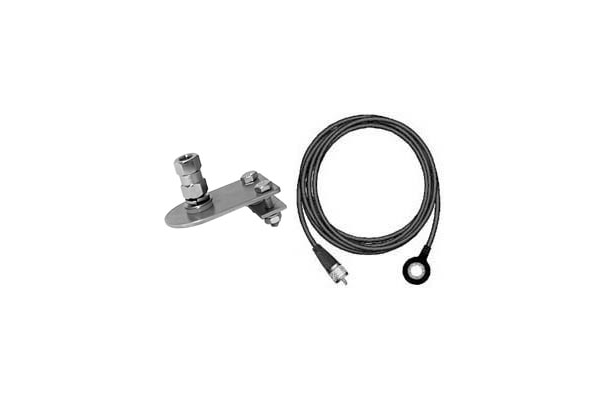

This kit includes a quality stainless steel mount and 18 ft (5.5m) of professional grade Fire-Flex coaxial cable (with FireStik's exclusive Fire-Ring connector) all in one package!

The mini-kit was specifically designed for the 1997 and newer Jeep Wranglers. The mounting bracket attaches to the front fender lip under the vehicles hood (either left or right side). Through testing FireStik has found that having the antenna in front of the driver is a better option than the popular bumper type mounts. With the mount in front, the driver has constant visual contact with the antenna. There is nothing worse than breaking your antenna in the middle of a trail run because you were unable to see that it was getting into trouble. FireStik also prefer to have the antenna on the drivers side of the vehicle as most obstructions will be found hanging over the outer edges of the roads or trails. If the vehicle is being used over severe terrain, the mount should be moved forward (closer to the fender bolt) for added stability. The design of the Jeep fender leaves a large portion of the fender unsupported near the windshield.

All of the stainless steel mounting hardware (supplied) is hidden under the hood. The bracket is 2" (51mm) wide by 3" (76mm) long.

Mini-kits give you the freedom to create your own personalized antenna kit. Any of the FireStik standard 3/8"-24 threaded antennas or accessories will screw directly into the antenna stud. Pick any color FireStik, FireStik II, Firefly, Road Pal, Scanner, 2-meter or Mach-10 antenna up to 4' (1.2m) to complete your installation. Each mini-kit contains a FREE microphone hanger.

NOTE: The PL-259 connector (radio end) is supplied in this kit but is not installed on the coax cable. This allows the cable to be routed into the vehicle through a smaller hole. A grommet is supplied. After the connector is placed on the coax, the center conductor MUST be soldered to the PL Connector.

NOTE: The rearward part of the fender on newer Jeeps does not have the same support that was found in earlier models. On these vehicles we recommend that the bracket be mounted at least 8-inches (20cm) forward of the rear edge of the fender where it has sufficient support. If this is not followed, or if the rear part of the fender is not given additional support, the fender, dependent upon the antenna size, will flex from any whipping action of the antenna.

FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.

Features and Specifications:

• Jeep Hood Channel Mount Mini-Kit
• Stainless Steel Jeep Fender Mount
  • Includes FireStik Antenna Stud Mount
  • Includes Stainless Steel Mounting Hardware
  • For 1997 and Newer Jeep Wranglers
• 18 Ft (5.5m) of Professional Grade Fire-Flex Coaxial Cable
  • Stranded Center Conductor to Maximize Flexibility and Prevent Untimely Breakage
  • Shielding Coverage that Averages 95% to Protect Against RF Leaks and Interference
  • Polyvinyl Center Insulation for Ruggedness and Longevity
  • Performance That Exceeds Mil-Spec Requirements for 50 Ohm RG-58A/U Coax
  • Use On any Single Antenna Installation
  • PL-259/FireRing Termination
  • Supplied Without PL-259 Connector Installed (Radio End) - To Allow Easier Cable Routing
• UPC 0716414201161
• Color: Black
• Manufacturer's Limited Warranty - 1 Year(s)- Coax Cable Assembly
• Manufacturer's Limited Warranty - 2 Year(s)- Stainless Steel Mount
• Sold: Each

FireStik (MK-J4R) - Stainless Steel Jeep Hood Channel Mount Mini-Kit
