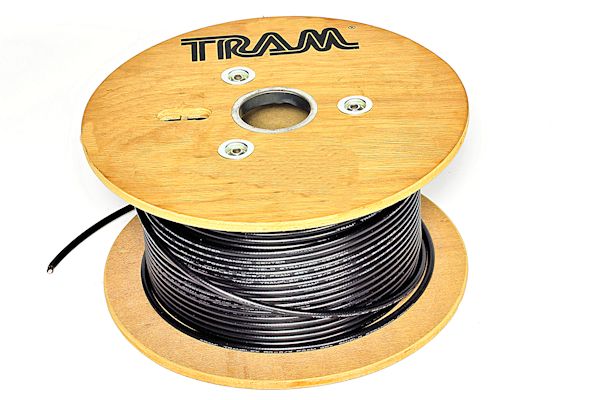

Tram (213U-500) - Low Loss RG-213/U Cable, Black, By The Foot, Coaxial Cable


Product ID:   PID1519
Status: Out of Stock - Can Not Order At This Time

Tram (213U-500) - Low Loss RG-213/U Cable, Black, By The Foot, Coaxial Cable



Price:
Quantity:




Purchase Options





Tram (213U-500) - Low Loss RG-213/U Cable, Black, By The Foot


Description:

This coaxial cable is well suited for high-power amateur radios and/or long cable runs of 50' or more at any power. The cable has a characteristic impedance of 50 Ohm.

Most two-way radio communication systems, such as marine, CB radio, amateur, police, fire, WLAN antennas etc., are designed to work with a 50 Ohm cable.

Tram 213U-500 cable is to be used in a "single antenna" installation only.

Purchase Options: We can professionally assemble a custom length RG-213/U coaxial cable for you or add two connectors to your cart so you can do the assembly yourself. Bob's CB Shop utilizes and recommends our part number PID2293: Bob's CB (UHF-06B-TSSS IP) Silver/Teflon UHF Male Soldering Type (PL-259) connector. These "Purchase Options" are available in the drop down selection box just above the blue "Add To Cart" button.


Tram-Browning: Quality Workmanship and Materials - Exceptional Performance and Function - Expert Engineering


Features and Specifications:

  • Low Loss RG-213/U Coaxial Cable
  • Military Spec MIL-C-17G
  • Bare Copper Braid
  • 95% Shield
  • Stranded Bare Copper Center Conductor
  • 50 Ohms
  • Purchase Options:
    • Option 1: Select to Purchase Coaxial Cable Only
    • Option 2: Select to Add Two (2) Silver/Teflon UHF Male Connectors to your purchase - our part number PID2293
    • Option 3: Select to have Bob's CB Shop Professionally Assemble a Custom Length Coax for You - Utilizing PID2293
  • UPC 0727932012399
  • Color: Black
  • Sold: By The Foot


Tram RG-213/U Coaxial Cable Specifications:


Attenuation
Frequency
MHz 		Attenuation
dB/100 ft. 		Attenuation
dB/100 m
100 1.89 6.20
200 1.71 8.90
400 4.08 13.40
900 7.62 25.00

Specifications

Shield Imp. Velocity Bare Copper Braid 95%, 50 Ohms, 66% VOP
Center Conductor Stranded Bare Copper, 7/21 ga (0.0296") (7/0.752mm)
Polyethylene Insulation Solid, 0.285" (7.24mm)
Capacitance 30.80 pF/ft., 101.00 pF/m
Jacket 0.405" (10.3mm), Non-Contaminated Black PVC


Tram (213U-500) - Low Loss RG-213/U Cable

Please Note:
  • This Selection Is Tram (213U-500) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: By The Foot





Inventory Status: Out of Stock - Can Not Order At This Time
