Tram (TBFC-9) - Big FlatCat, Aluminum Flat Coil, Tunable, 9in Shaft, 51 1/4in Whip, 2 3/4in Coil, 37K Watt, 25-30MHz, Center Loaded, Mobile CB Antennas


Product ID:   PID1515
Status: Available To Order










Tram (TBFC-9) - Big FlatCat, Aluminum Flat Coil, Tunable, 9in Shaft, 51 1/4in Whip, 2 3/4in Coil, 37K Watt, 25-30MHz, Center Loaded, Mobile CB Antennas



Price:
Quantity:




Shipping Information:





Tram (TBFC-9) - Big FlatCat, Aluminum Flat Coil, Tunable, 9in Shaft, 51 1/4in Whip, 2 3/4in Coil, 37K Watt, 25-30MHz, Center Loaded


Description:

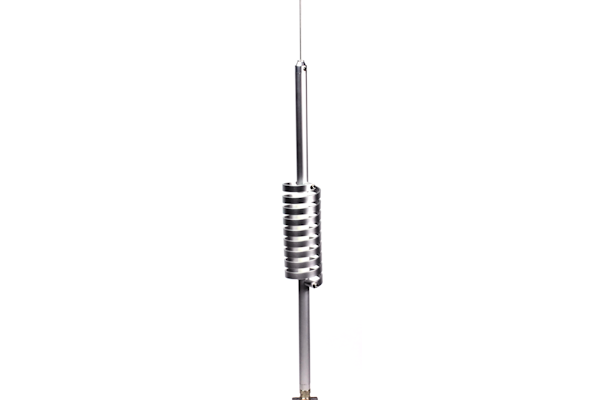

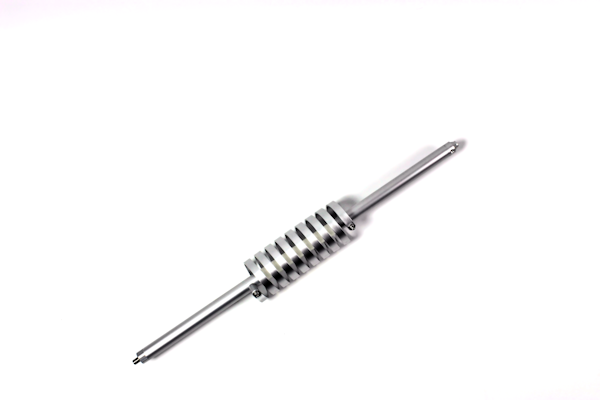

This Tram CB & 10 Meter mobile antenna is manufactured with ultra light high performance aluminum. It also features a stainless steel all thread mount and whip. The air-wound flat aluminum coil provides a large surface area for the RF to travel on creating an extremely efficient performing antenna with an outstanding bandwidth. This antenna works great as a single antenna or in a co-phased system. It outperforms almost all CB and 10-Meter antennas.


Tram-Browning: Quality Workmanship and Materials - Exceptional Performance and Function - Expert Engineering


Features and Specifications:

  • Center Loaded Mobile CB Antenna
  • 25-30MHz Frequency Range
  • 37,000 Watts Power Handling

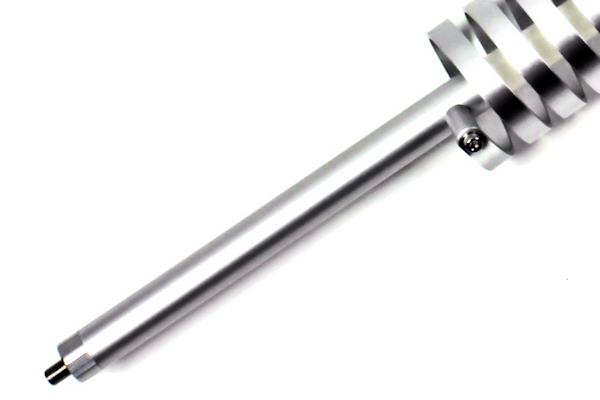

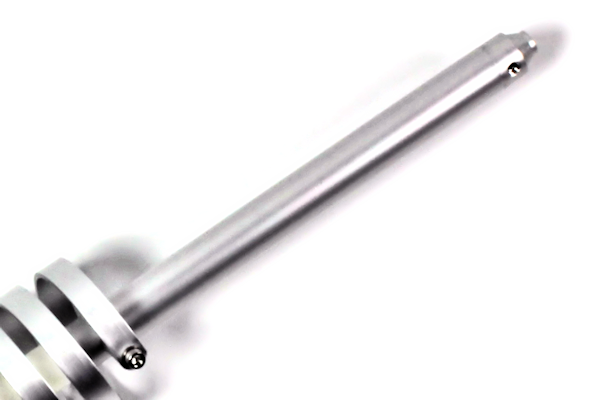

  • Shaft Length - 9"
  • 28/32" Diameter Shaft

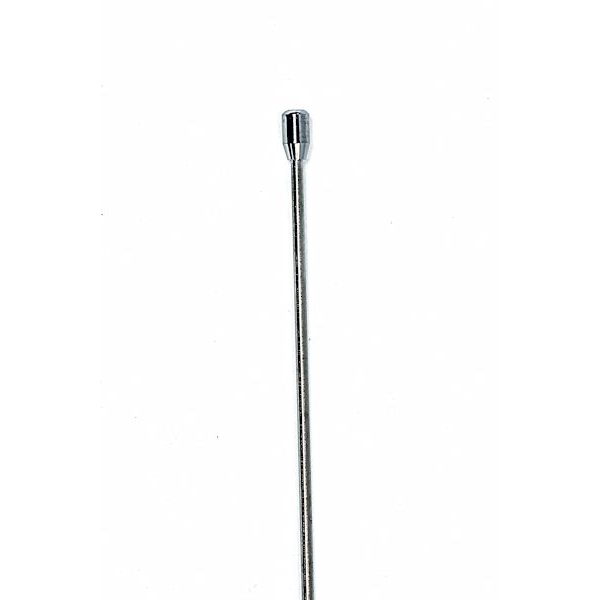

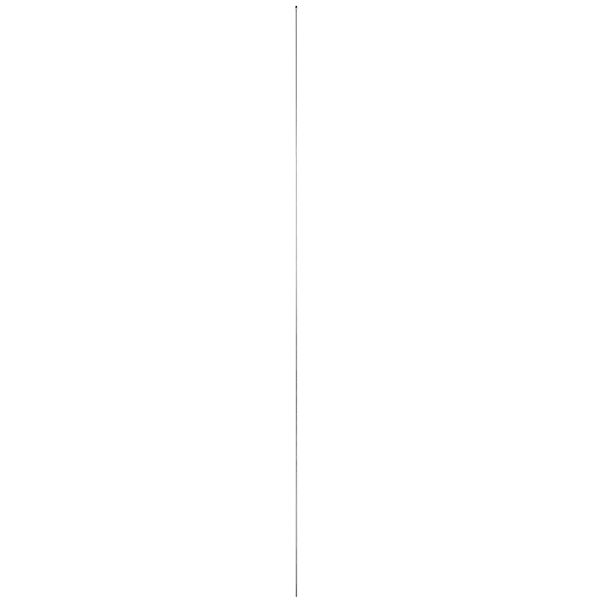

  • Stainless Steel 17-7 ph Tempered 3 mm Tapered Whip - 51 1/4" Length

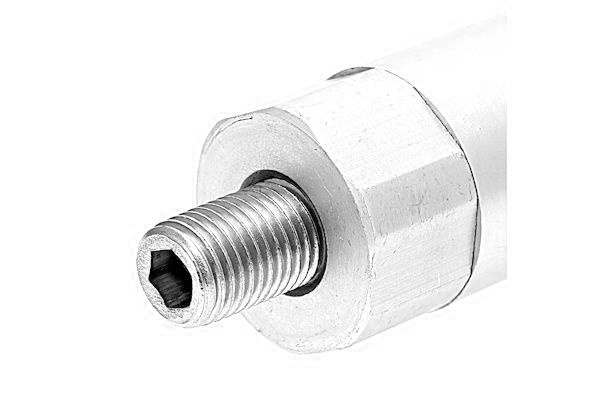

  • Standard 3/8" x 24 Thread Mounting
  • 76" Total Height

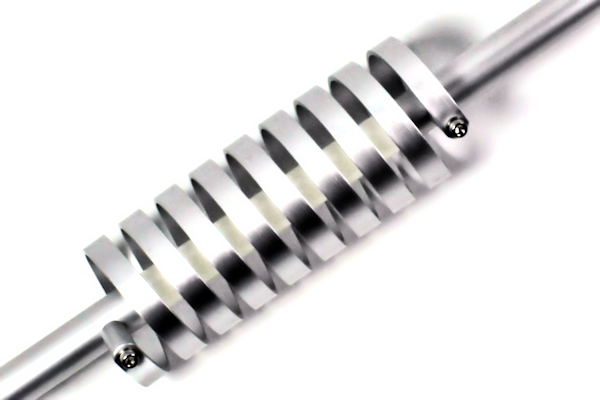

  • Coil Width - 1/2"
  • Coil Diameter - 2 3/4"
  • Harder than Steel Insulator
  • Tunable
  • Antenna Weight: 18 oz.
  • UPC 0727932013150
  • Sold: Each


Item# Part # Coil
Width 		Shaft
Length 		Whip
Length 		Total
Length 		Power
Handling
1515 TBFC-9 1/2" 9" 51 1/4" 76" 37KW

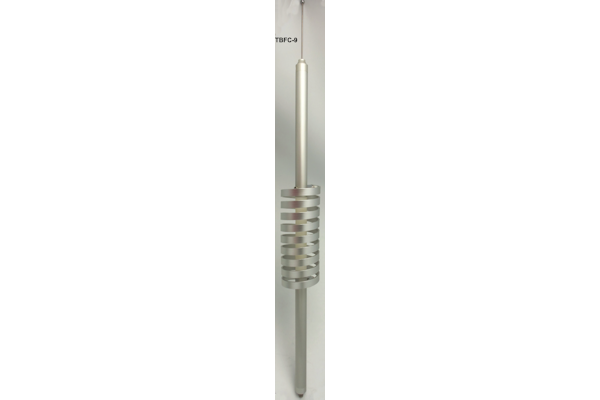

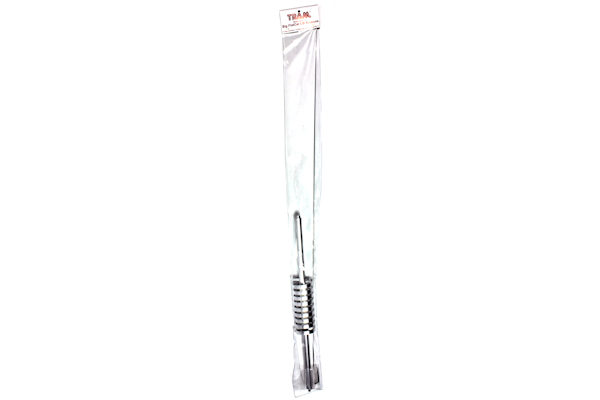

Tram (TBFC-9) - Big FlatCat

Please Note:
  • This Selection Is Tram (TBFC-9) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Available To Order
