~RF Limited (Magnum 1) - AM/FM/USB/LSB/CW/PA, Black, 10 & 12 Meter Mobile Radios


Product ID:   PID1364
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.

~RF Limited (Magnum 1) - AM/FM/USB/LSB/CW/PA, Black, 10 & 12 Meter Mobile Radios





RF Limited (Magnum 1) - AM/FM/USB/LSB/CW/PA, Black


Description:

The MAGNUM 1 AM/FM/SSB/CW 12 and 10 meter amateur transceiver is designed to provide years of enjoyment and trouble-free service. There are many features and functions designed into this transceiver.

The MAGNUM 1 is a microprocessor controlled, user programmable radio combining both high RF performance with a user-friendly environment. The MAGNUM 1 is built rugged to withstand years of use in harsh mobile environments. Although engineered with mobile use in mind the MAGNUM 1, with the addition of a high quality 20 amp regulated power supply, may be easily adapted to fixed station operation.

Some of the features of the MAGNUM 1 are: an advanced design liquid crystal display that provides the operator with a full visual account of the transceiver's operating status, automatic frequency scanning from either the front panel or microphone, programmable frequency resolution of from 5 Hz through 1MHz, and coverage of both the 12 and 10 meter amateur bands.

Magnum Int'l - Amateur Radios


Features and Specifications:

  • 10 & 12 Meter Mobile Amateur Radio
  • All Mode - AM/FM/USB/LSB/CW/PA
  • Transmit: 24.890 ~ 24.990 and 28.000 ~ 29.700 MHz
  • Receive: 24.500 ~ 29.999 (Continuous Coverage)
  • 50 Watts PEP Output Power
    • Dual MOSFET Finals
    • Variable RF Power Out
  • Temperature Compensated Crystal Oscillator (TCXO)
    • Rock Solid Frequency Stability
    • 20 Times More Stable than XO
  • Digital VFO - 5Hz Resolution
  • Digital Echo Volume & Delay and Variable Talk Back
  • Programmable Roger Beep - Tone & Duration
  • EL Backlight Front Panel
  • RX Audio Tone Control (Hi-Cut)
  • 3-Button Stock Microphone - Up/Down/ASQ - Wired 6-Pin Magnum
  • Large Digital S/RF/SWR Meter
  • Real-Time SWR Meter - Continual Reading
  • Multi-Mode Clarifier - RX Only/TX Only/RX & TX
  • Frequency Scan - Squelch & Time Operated
  • Noise Blanker
  • Automatic Squelch (ASQ)
  • PA Mode with Volume Control
  • +10 kHz Switch
  • Specifications:
    • General:
      • RF Limited Magnum 1
      • Frequency Coverage: Transmit and Receive 24.890-24.990 & 28.000-29.699 MHz
      • Antenna Impedance: 50 ohm, unbalanced
      • Frequency Control: Digital Phase-Lock Loop (PLL) Synthesizer
      • Frequency Tolerance: 0.005%
      • Frequency Stability: 0.001%
      • Temperature Range: -30 to +50C
      • Power Requirement: 12 - 13.8 V DC, negative ground
      • Current Consumption: 9 amps maximum
      • Dimensions: 7.75 x 2.25 x 10.75 in (W x H x D)
      • Weight: 4.4 lbs.
    • Transmitter:
      • Power Output:
        • SSB: 50 Watts
        • FM/CW 20 Watts
        • AM 1-10 Watts Average/50 Watts PEP
      • Tuning Steps: 5 Hz/10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz
      • Final Transistor: ERF2030 (x2)
      • Spurious Emissions: More than 50 dB below peak output power
      • Carrier Suppression: More than 55 dB below peak output power
      • Unwanted Sideband: More than 50 dB below peak output (1 kHz tone)
      • FM Deviation: +/- 2 kHz maximum
      • Audio Response: More than 30dB below peak output
      • Frequency Response: 300 to 3000 Hz
      • Microphone Impedance: ECM, 2.2K ohms
    • Receiver:
      • Circuit Type: Dual-Conversion Superheterodyne
      • Intermediate Frequencies: 1st IF/SSB IF - 10.695MHz; 2nd IF - 455kHz
      • Sensitivity: SSB - 0.25 u V at 10 dB S +N/N; AM - 1.0 uV at 10 dB S + N/N; FM - . 0.3 uV at 12 dB SINAD
      • Selectivity: SSB - 6.0 kHz (-6 db)/3.3 kHz (-60 dB); AM/FM - 6.0 kHz (-6 dB)/9 kHz (-60 dB)
      • Clarifier Range: Continous (Digital VFO)
      • Adjacent Channel Rejection: Better than 70 dB
      • IF Rejection: Better than 80 dB for all frequencies
      • Frequency Response: 250 to 3000 Hz
      • Audio Output Power: 3 watts minimum at 10% THD with an 8 ohm load
      • Audio Output Impedance: 8 ohms
  • Contents:
    • 10 & 12 Meter Magnum 1 Radio
    • Stock Microphone - Wired 6-Pin Magnum
    • DC Power Cord with Inline Fuse
    • Mounting Bracket with Hardware
    • Microphone Hanger with Hardware
    • Operating Manual with Schematic
    • Warranty Registration Form
  • UPC 0719962007001
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each

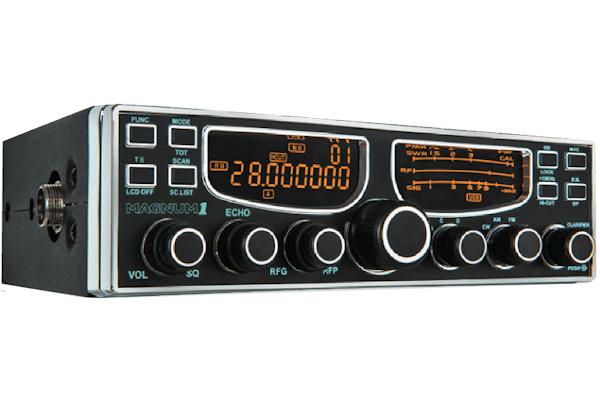

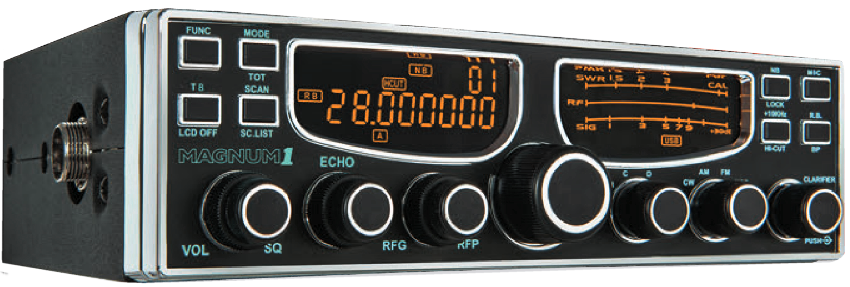

RF Limited Magnum 1 - 10 & 12 Meter Amateur Radio
RF Limited Magnum 1 - 10 & 12 Meter Amateur Radio

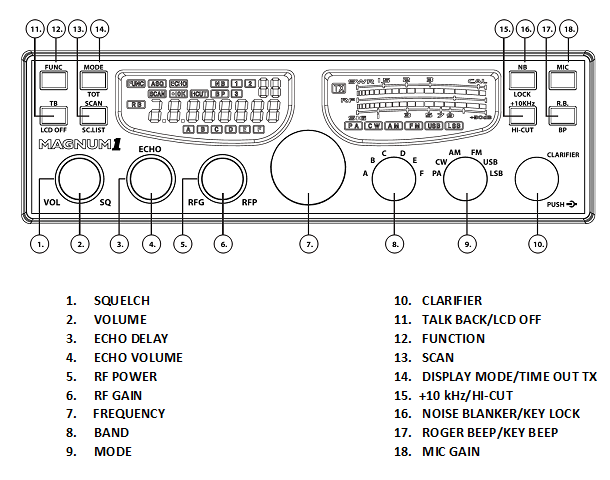

RF Limited Magnum 1 - Operation's Guide
