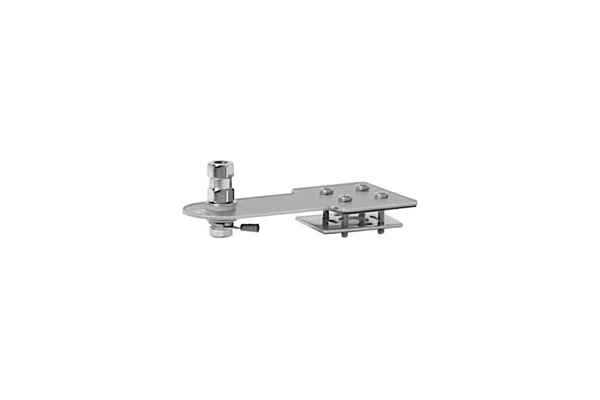

FireStik (SS-194) - Stainless Steel Pick-Up Extended Stakehole Mount, Antenna Stud Mount with Ring Terminal Connectors, Mobile Antenna Mounts


Product ID:   PID1344
Status: Out of Stock - Can Not Order At This Time


FireStik (SS-194) - Stainless Steel Pick-Up Extended Stakehole Mount, Antenna Stud Mount with Ring Terminal Connectors, Mobile Antenna Mounts



Price:
Quantity:









FireStik (SS-194) - Stainless Steel Pick-Up Extended Stakehole Mount, Antenna Stud Mount with Ring Terminal Connectors


Description:

Those square holes in the bed rails of full size pick-up trucks are the prefect location for a "no-holes" antenna mount.

This stainless steel mount locks into any of the stake hole pockets along the edge of a pick-up truck bed and extends out over the bed rail so you may mount your antenna without losing the ability to mount a camper shell. There is no need to drill any holes in the vehicle. The mount will easily support heavy-duty antennas up to 4 feet (1.2m) in length.

Note: With the exception of being able to correct for slight bed rail tilt using gasket material or a fabricated wedge of sorts, this mount does not contain angular adjustments. The top of the bed rail needs to be close to the horizontal plane to prevent the antenna from leaning inward or outward when viewed from the front or back of the vehicle.

Important Consideration: When mounted in either of the stake hold pockets directly behind the vehicle cab, antennas that are shorter than 4-feet will experience substantial reflection from the metallic corners of the cab. Antennas shorter than 4-feet will, in most likelihood, be difficult, if not impossible, to tune to a satisfactory SWR.

The mount comes complete with FireStik's world famous heavy-duty K-4 antenna stud. The K-4 stud utilizes ring terminal connectors (supplied) making it compatible with non-PL-259 terminated coaxial cables. FireStik recommends the use of 18ft (5.5m) RG-58A/U high quality coaxial cable with all of their fiberglass antennas. Coaxial cable assembly model K-8A would be the recommended cable to use with this mount when using a single antenna or, model K-9A if running twin (co-phased) antennas.

May be used with any 3/8"-24 threaded antenna or accessory.


FireStik Antenna Company - Manufacturer of FireStik brand CB Antennas, Safety Flags and accessories.


Features and Specifications:

  • Pick-Up Extended Stakehole Mount
  • Stainless Steel
  • Locks Into any of the Stake Hole Pockets Along the Edge of a Pick-Up Truck Bed
  • Extends Out Over the Bed Rail So You May Mount Antenna Without Losing the Ability to Mount a Camper Shell, Etc.
  • For Use with Antennas Up To 4ft In Length
  • Mount the Antenna on Either the Left or Right Side of the Vehicle
  • K-4 Stud Utilizes Ring Terminal Connectors - Compatible with Non-PL-259 Terminated Coaxial Cables
  • Standard 3/8"-24 Threads
  • UPC 0716414200713
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each


FireStik (SS-194) - Stainless Steel Pick-Up Extended Stakehole Mount

Please Note:
  • This Selection Is FireStik (SS-194) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: Out of Stock - Can Not Order At This Time
