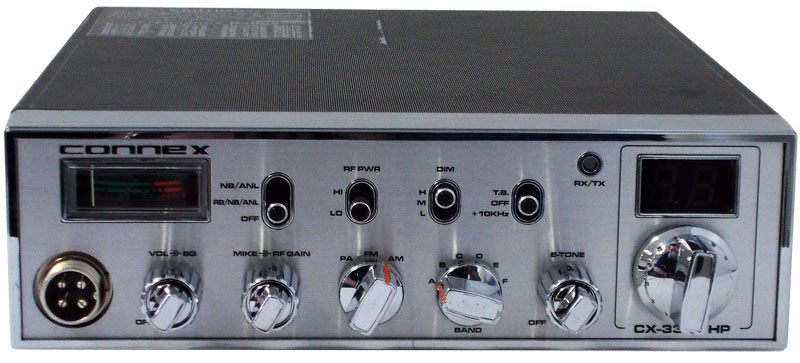

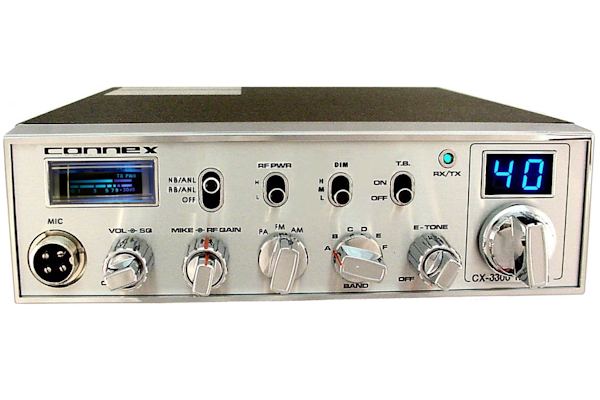

Connex (CX-3300HP) - AM/FM/PA, Black

Description:

The Connex CX-3300HP features 40+ watt power output, blue lighting, front mic jack, echo with dual controls and switchable talkback.

Connex - Amateur and CB Radios

Features and Specifications:

• 10 Meter Mobile Amateur Radio
• AM/FM/PA
• 40+ Watts
• Small Meter with Scales for Signal Strength and Power Output
• Front Panel 4 Pin Mic Jack
• Blue Channel LED's
• Rear Frequency Counter Jack
• Three Position Dimmer Control
• Vol, Sql, Mic Gain, RF Gain
• Dual Echo and Talk Back with On/Off/+10KHz Switch
• Band Selector (6 Bands)
• 2 Level Power Control
• ANL-NB or RB-NB-ANL or OFF Switch
• Blue Lighting for Meter
• RX/TX Indicator LED
• Specifications:
  • General:
    • Model: CX-3300HP
    • Frequency Range: 28.015 to 28.585 MHz
    • Emission: AM/FM
    • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
    • Frequency Stability: 0.001%
    • Temperature Range: -30C to +50C
    • Antenna Impedance: 50 Ohms
    • Antenna Connectors: Standard SO-239 type
    • Input Voltage: 13.8V DC
    • Current Draw: 7 Amp
    • Fuse Size: 10 Amp
    • Size: 2-3/8" (H) x 7-7/8" (W) x 10-3/4" (D)
    • Weight: 5 lb.
    • Meter: Illuminated; indicates relative output power, received signal strength
  • Transmitter:
    • RF Power Output: Hi: 12W; Lo: 3W
    • Spurious Emission: > -50 dB
    • Audio Distortion: 10%
    • Frequency Response: 300 to 2500 Hz
    • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
  • Receiver:
    • Sensitivity for 10 dB (S+N)/N: AM: <1 uV
    • Sensitivity for 20 dB (S+N)/N: FM: <1 uV
    • Squelch Sensitivity: <0.5 uV
    • Sensitivity: >-60dB
    • Image Rejection: > 50 dB
    • Hum & Noise: >-40 dB
    • AGC Figure of Merit: 70 dB for 50 mV for 10 dB Change in Audio Output
    • Audio Power Output: 2.5W @ 10% Distortion
    • Audio Response: 300 to 2500 Hz
• Contents:
  • 10 Meter Connex CX-3300HP Radio
  • 4 Pin Stock Microphone
  • DC Power Cord
  • Mounting Bracket with Hardware
  • Microphone Hanger with Hardware
  • User's Manual
• UPC 0705105786391
• Color: Black
• Manufacturer's Limited Warranty - 1 Year(s)
• Sold: Each
