~President (Lincoln II) - AM/FM/USB/LSB/CW/PA, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID1252
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.




~President (Lincoln II)  - AM/FM/USB/LSB/CW/PA,  Black, 10 Meter Amateur Mobile Radios





President (Lincoln II) - AM/FM/USB/LSB/CW/PA, Black


Description:

Welcome to the world of the new generation of transceiver radios. The new PRESIDENT range gives you access to top performance transceiver equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT LINCOLN II ASC is a new step in personal communication and is the surest choice for the most demanding of amateur radio users.


PRESIDENT - More than a name, PRESIDENT is the representative of the Citizen's Band which unites millions of CB users all over the world : drivers, purists and technology fans.


Features and Specifications:

  • 10 Meter Amateur Mobile Radio
  • AM/FM/USB/LSB/CW/PA
  • Rotary Switch and Up/Down Channel Selector
  • VFO Mode (Continuous Scanning of 28.000 Mhz to 29.700 Mhz)
  • Volume Adjustment and ON/OFF
  • RF Power
  • Manual Squelch and ASC
  • Multi-Functions LCD Display
  • Frequencies Display
  • S-Meter
  • Public Address
  • Vox Function (Hands Free)
  • ANL Filter , NB and HI-CUT
  • RF Gain / Mike Gain
  • Clarifier
  • Channels and Memories Scan
  • 6 Memories
  • CTCSS (38 tones)
  • DCS (104 codes)
  • Dim
  • MENU Function Key
  • Beep Function
  • Roger Beep
  • Mode Switch AM/FM/LSB/USB/CW
  • Dual Watch
  • Key Locking
  • SWR (Power Reading /SWR)
  • Preset 9/19
  • TOT (Time Out Timer) Adjustable
  • Front Microphone Plug
  • External Loudspeaker Jack
  • Dimensions H x W x D (in mm) : 52 x 170 x 250
  • Dimensions H x W x D (in inches) : 2 3/64" x 6 11/16" x 9 27/32"
  • Weight : 1.4 kg
  • Weight : 3.09 lbs
  • Back Light Color: Orange, Green, Blue
  • Included Accessories:
    • Power Cord with Fuse
    • 1 Microphone and Its Hanger
    • 1 Mounting Bracket with Fixing Screws
  • Technical Characteristics:
    • General
      • Bands : 10
      • Modulation Modes : AM/FM/LSB/USB/CW
      • Frequency Ranges : from 28.000 MHz to 29.700 MHz
      • CTCSS : 38 tones
      • DCS : 104 Codes
      • Antenna Impedance : 50 ohms
      • Power Supply : 13.2 V
    • Transmission
      • Frequency Allowance : +/- 300 Hz
      • Carrier Power : 12 W AM / 28 W FM / 31 W USB-LSB / 12 W CW
      • Transmission Interference : Inferior to - 50 dBc
      • Audio Response : 300 Hz to 3 kHz
      • Emitted Power in the Adj. Channel : Inferior to 20 microW
      • Microphone Sensitivity : 3 mV
      • Drain : 6 A (with Modulation)
      • Modulated Signal Distortion : 1.8 %
    • Reception
      • Maxi. Sensitivity at 20 dB sinad :
        • 0.5 microV -110 dBm (AM)
        • 0.35 microV -116 dBm (FM)
        • 0.28 microV-118 dBm (USB/LSB/CW)
      • Frequency Response : 300 Hz to 3 kHz
      • Adjacent Channel Selectivity : 60 dB
      • Maximum Audio Power : 3 W
      • Squelch Sensitivity :
        • mini 0.2 microV - 120 dBm
        • maxi 1 mV - 47 dBm
      • Frequency Image Rejection Rate : 60 dB
      • Intermediate Frequency Rej. Rate : 70 dB
      • Drain : 400 mA nominal, 600 mA max
  • UPC 3435991123051
  • Color: Black
  • Manufacturer's Limited Warranty - 2 Year(s)
  • Sold: Each

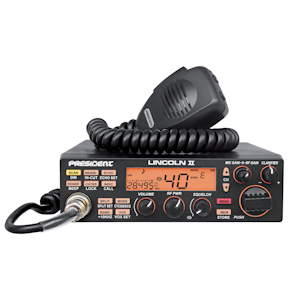

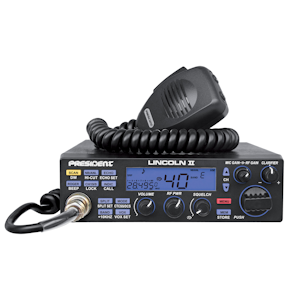

President Lincoln II - Front and Rear Panel Functions and Features
President Lincoln II - Front and Rear Panel Functions and Features


President Lincoln II User Manual


President (Lincoln II) - AM/FM/USB/LSB/CW/PA

Please Note:
  • This Selection Is President (Lincoln II) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.
