~Connex (CX-33HP-ATC) - AM/FM/PA, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID1215
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.

~Connex (CX-33HP-ATC)  - AM/FM/PA,  Black, 10 Meter Amateur Mobile Radios





Connex (CX-33HP-ATC) - AM/FM/PA, Black


Description:

The Connex CX-33HP-ATC features 40+ watt power output, blue lighting, front mic jack, echo with dual controls and switchable talkback.

The CX-33HP-ATC also comes with a 3 position ATC switch: With the switch in the A position, you can add echo to your voice. With the switch in the B position, you can adjust the tone and pitch of your voice. In the C position, your voice will sound like a robot.

The CX-33HP-ATC's auto dimmer control (ADC) with light sensor will adjust the brightness of the channel display, meter light and LED light with environmental conditions.

Connex - Amateur and CB Radios


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • AM/FM/PA
  • 40+ Watts
  • Small Meter with Scales for Signal Strength and Power Output
  • Front Panel 4 Pin Mic Jack
  • Blue Channel LED's
  • Rear Frequency Counter Jack
  • Auto Dimmer Control (ADC) LED
  • Vol, Sql, Mic Gain, RF Gain
  • Dual Echo and Talk Back with On/Off/+10KHz Switch
  • ATC Switch: (A) Echo, (B) Tone & Pitch, and (C) Robot
  • Band Selector (6 Bands)
  • 2 Level Power Control
  • ANL-NB or RB-NB-ANL or OFF Switch
  • Blue Lighting for Meter
  • RX/TX Indicator LED
  • Specifications:
    • General:
      • Model: CX-33HP-ATC
      • Frequency Range: 28.015 to 28.585 MHz
      • Emission: AM/FM
      • Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
      • Frequency Stability: 0.001%
      • Temperature Range: -30C to +50C
      • Antenna Impedance: 50 Ohms
      • Antenna Connectors: Standard SO-239 type
      • Input Voltage: 13.8V DC
      • Current Draw: 7 Amp
      • Fuse Size: 10 Amp
      • Size: 2-3/8" (H) x 7-7/8" (W) x 10-3/4" (D)
      • Weight: 5 lb.
      • Meter: Illuminated; indicates relative output power, received signal strength
    • Transmitter:
      • RF Power Output: 10W
      • Spurious Emission: > -50 dB
      • Audio Distortion: 10%
      • Frequency Response: 300 to 2500 Hz
      • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
    • Receiver:
      • Sensitivity for 10 dB (S+N)/N: AM: <1 uV
      • Sensitivity for 20 dB (S+N)/N: FM: <1 uV
      • Squelch Sensitivity: <0.5 uV
      • Sensitivity: >-60dB
      • Image Rejection: > 50 dB
      • Hum & Noise: >-40 dB
      • AGC Figure of Merit: 70 dB for 50 mV for 10 dB Change in Audio Output
      • Audio Power Output: 2.5W @ 10% Distortion
      • Audio Response: 300 to 2500 Hz
  • Contents:
    • 10 Meter Connex CX-33HP-ATC Radio
    • 4 Pin Stock Microphone
    • DC Power Cord
    • Mounting Bracket with Hardware
    • Microphone Hanger with Hardware
    • User's Manual
  • UPC 0705105786513
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each

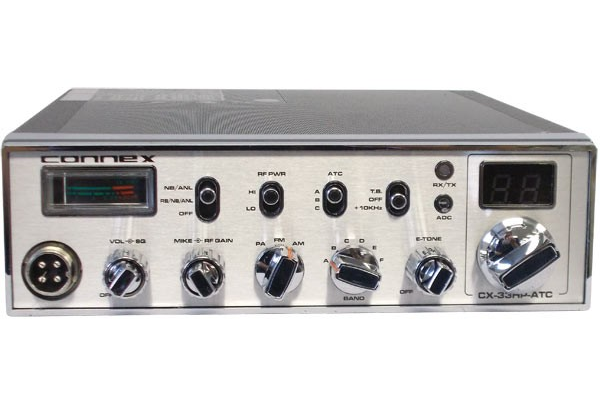

Connex CX-33HP-ATC - 10 Meter Amateur Radio
Connex CX-33HP-ATC - 10 Meter Amateur Radio


Connex CX-33HP-ATC - Operation's Guide
Connex CX-33HP-ATC - Operation's Guide


The CX-33HP-ATC Manual


Connex (CX-33HP-ATC) - AM/FM/PA

Please Note:
  • This Selection Is Connex (CX-33HP-ATC) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.
