~Magnum (Raptor MKIII) - AM/FM, Black, 10 Meter Amateur Mobile Radios


Product ID:   PID1205
Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.


~Magnum (Raptor MKIII) - AM/FM, Black, 10 Meter Amateur Mobile Radios

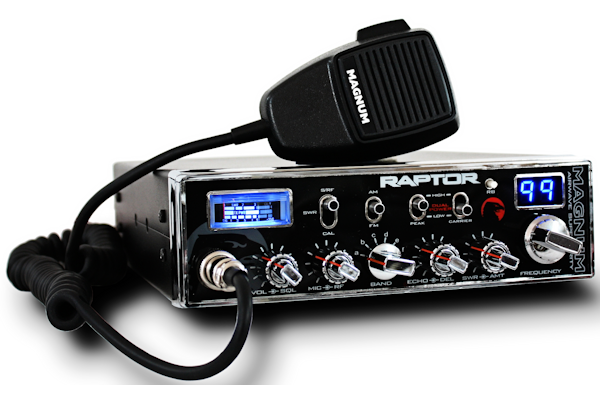

Magnum (Raptor MKIII) - AM/FM, Black


Description:

The Magnum Raptor MKIII is a combination microprocessor and phase-lock loop (PLL) controlled radio combining both high RF performance with a user-friendly front panel. The Magnum Raptor is built rugged to withstand years of use in harsh mobile environments. Although engineered with mobile use in mind the Magnum Raptor, with the addition of a high quality, properly sized regulated power supply, may be easily adapted to fixed station operation.

The Raptor features an exclusive dual power system that allows quick and easy adjustment of the radios carrier and peak RF output power. This is a very useful feature when switching between operating and not operating an external amplifier.

The CARRIER LOW - HIGH: Adjusts the RF output power on FM and the carrier only on AM. In the LOW position the carrier level will be 2 watts. In the HIGH position the carrier level will be 40 watts.

The PEAK LOW - HIGH: Adjusts the peak RF output power (modulated power) on AM only. In the LOW position the peak power will be 40 watts PEP. In the HIGH position the peak power will be 175 watts PEP.

Magnum Int'l - Amateur Radios


Features and Specifications:

  • 10 Meter Mobile Amateur Radio
  • AM/FM
  • True Dual Power Output - 175 & 40 Watts PEP
  • Selectable Peak and Carrier RF Output Settings
  • Front Panel Microphone Jack - 4 Pin
  • Blue Back Lit LED Display
  • Built-In SWR Bridge
  • S/RF/SWR Meter - Blue LED Backlit
  • Two Color Backlight Meter: RX Mode = Blue; TX Mode = Red
  • RF Gain and Microphone Gain Controls
  • SWR/Calibrate Meter and Controls
  • TURBO Digital Echo - A Magnum Exclusive!
  • AMT - All Mode Talk-Back with Volume Control
  • Roger Beep with On/Off Control
  • Ext. Frequency Counter Jack on Rear Panel
  • MARS / CAP Capable (Permits Required)
  • Off/Vol/Sql Controls
  • Mic Gain/RF Gain Controls
  • Band Selector (6 Bands)
  • Echo Volume/Delay Controls
  • SWR/All Mode Talkback (AMT) Controls
  • Channel Selector
  • S/RF-SWR-CAL Switch
  • AM/FM Mode Switch
  • Dual Power System: Carrier High/Low Switch, Peak RF Output High/Low Switch
  • Specifications:
    • General:
      • Magnum Raptor MKIII
      • Emission: FM (F3E)/AM (A3E)
      • Antenna Impedance: 50 ohm, unbalanced
      • Frequency Control: Digital Phase-Lock Loop (PLL) Synthesizer
      • Frequency Accuracy: Better than +10 ppm from 0 - 40C after 15 min. warm up
      • Power Requirement: 12 - 13.8 V DC, negative ground
      • Current Consumption: 30 amps maximum
      • Dimensions: 7.75 x 11.375 x 2.5 (inches)
      • Weight: 4.6 lbs.
      • Meter: Illuminated; indicates relative output power, received signal strength, and SWR level; blue = RX; red = TX
    • Transmitter:
      • Power Output:
        • AM Peak Low: 40 Watts PEP
        • AM Peak High: 175 Watts PEP
        • AM/FM Carrier Low: 2 Watts
        • AM/FM Carrier High: 40 Watts
      • Tuning Steps: 10 kHz
      • Final Transistor: ERF7530 X 2
      • Spurious Emissions: More than 50 dB below peak output power
      • Carrier Suppression: More than 40 dB below peak output power
      • FM Deviation: +/- 2 kHz maximum
      • Frequency Response: 400 to 2800 Hz
      • Microphone Impedance: ECM, 600 to 1K ohm
      • Microphone: Plug-in dynamic; with push-to-talk switch and coiled cord
    • Receiver:
      • Circuit Type: Dual-Conversion Superheterodyne
      • Sensitivity: AM - 0.5 uV at 10 dB S + N/N; FM - . 0.3 uV at 12 dB SINAD
      • Selectivity: AM/FM - 6.0 kHz (-6 dB)/18 kHz (-60 dB)
      • Adjacent Channel Rejection: Better than 70 dB
      • IF Rejection: Better than 80 dB for all frequencies
      • Frequency Response: 250 to 3000 Hz
      • Audio Output Power: 2 watts minimum at 10% THD with an 8 ohm load
      • Audio Output Impedance: 8 ohms
  • Contents:
    • 10 Meter Magnum Raptor MKIII Radio
    • 4 Pin Stock Microphone
    • DC Power Cord with Inline Fuse
    • Mounting Bracket with Hardware
    • Microphone Hanger with Hardware
    • Operating Manual with Schematic/PLO
    • Warranty Registration Form
  • UPC 0719962006981
  • Color: Black
  • Manufacturer's Limited Warranty - 1 Year(s)
  • Sold: Each


Magnum Raptor - 10 Meter Amateur Radio
Magnum Raptor - 10 Meter Amateur Radio


Magnum Raptor - Operation's Guide
Magnum Raptor - Operation's Guide


The Raptor Manual


Magnum (Raptor MKIII) - AM/FM

Please Note:
  • This Selection Is Magnum (Raptor MKIII) ONLY.
  • Manufacturer's product specifications, packaging and limited warranties (if applicable) are subject to change.
  • Images are solely for illustrative purposes and may reflect multiple items or multiple views of a single item.
  • This Item Is Sold: Each





Inventory Status: ** Discontinued Item ** - No Longer Available - Cannot be Ordered.
