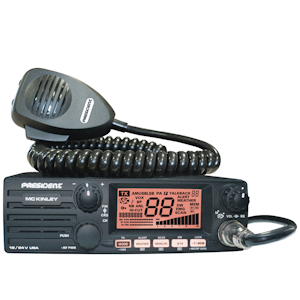

President (MC KINLEY USA) - DIN Size, Multi-Function LCD Display with 3 Backlight Colors, Frequency Display, Front Speaker, Weather, 12V/24V, Black, AM/USB/LSB/PA, 40 Channel

Description:

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT MC KINLEY USA 12/24 V is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users.

PRESIDENT - More than a name, PRESIDENT is the representative of the Citizen's Band which unites millions of CB users all over the world : drivers, purists and technology fans.

Features and Specifications:

• MC KINLEY USA - 12/24V - CB Radio with Ultra Light Electret Microphone
• 40 Channel AM/SSB Operation
• Ultra Light Electret Microphone Wired 6-Pin
• Channel Rotary Switch
• Weather Alert - 7 Weather Channels
• Volume Adjustment and ON/OFF
• Manual Squelch and ASC (Automatic Squelch Control)
• Multi-Functions LCD Display
• S-Meter - Digital - Power Reading/SWR
• Vox Function (Hands Free)
• Public Address
• ANL Filter, NB and HI-CUT
• Local DX key
• Channels and Memories Scan
• 3 Memories
• F Function Key
• Beep Function
• Roger Beep
• Dual watch
• Key Locking
• Preset 9/19
• Talkback
• Tone
• RF Power
• RF Gain
• Mic Gain
• Clarifier
• Dimmer
• Front Microphone Plug - Wired 6-Pin
• Front Speaker
• External Loudspeaker Jack
• Choice of 3 Backlight Colors: Orange, Green, Blue
• Supply: 13.8 V / 27.6 V
• DIN Size
• Size (W x D x H): 6.69 x 5.91 x 2.05 inches / 170 x 150 x 52 mm
• Weight: 2.20 lbs / 1 kg
• Included Accessories:
  • Power Cord with Fuse
  • 1 Microphone and Support
  • Mounting Cradle, Screws
• Technical Characteristics:
  • General
    • Number of Channels : 40 Cx (100% FCC)
    • Number of Weather Channels : 7 Cx
    • Weather Alert
    • Modulation Modes : AM/LSB/USB
    • Frequency Ranges : from 26.965 MHz to 27.405 MHz
    • Weather channels : from 162.400 MHz to 162.550 MHz
    • Antenna Impedance : 50 ohms
    • Power Supply : 13.8 V / 27.6 V
    • DIN Size
    • Size (W x D x H) : 6.69 x 5.91 x 2.05 inches / 170 x 150 x 52 mm
    • Weight : 2.20 lbs / 1 kg
  • Transmission
    • Frequency Allowance : +/- 200 Hz
    • Carrier Power : 4 W (Constant / Stabylised)
    • Transmission Interference : inferior to -60 dBc
    • Audio Response : 300 Hz to 3 kHz
    • Emitted Power in the Adj. Channel : Inferior to 20 microW
    • Microphone Sensitivity : 3 mV
    • Drain : 2 A (with modulation)
    • Modulated Signal Distortion : 1.8 %
  • Reception
    • Maxi. Sensitivity at 20 dB sinad : 0.6 microV -111 dBm (AM)
    • Frequency Response : 300 Hz to 3 kHz
    • Adjacent Channel Selectivity : > 60 dB
    • Maximum Audio Power : 2 W
    • Squelch Sensitivity : mini 0.2 microV - 120 dBm; maxi 1 mV - 47 dBm
    • Frequency Image Rejection Rate : 60 dB
    • Intermediate Frequency Rej. Rate : 70 dB
    • Drain : 300 mA nominal, 1000 mA max
• UPC 3435991326018
• Color: Black
• Manufacturer's Limited Warranty - 2 Year(s)
• Sold: Each
