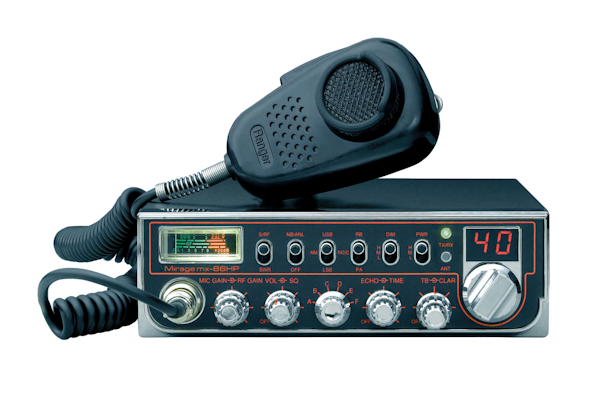

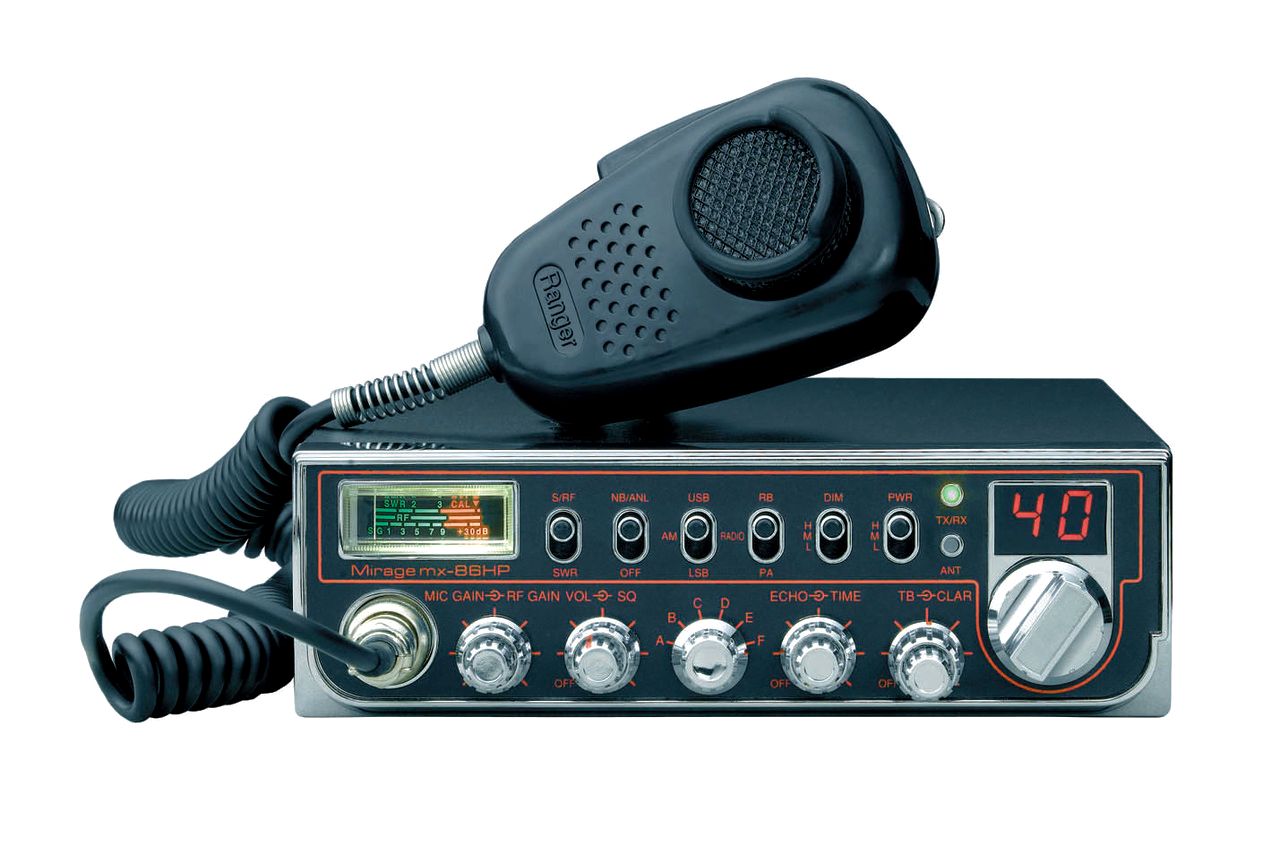

Mirage (MX-86HP) - AM/SSB/PA, Black
Description:
Finally, a small featured packed 10 meter radio.
The Mirage MX-86HP will fit those tight overhead
compartments in big trucks designed for a Cobra 29.
The MX-86HP has 40+ watt power output, front mic jack,
echo with dual controls, adjustable talkback, single side
band, Roger Beep, and a clarifier.
Mirage - Amateur Radios
Features and Specifications:
- 10 Meter Mobile Amateur Radio
- The Size of a Cobra 29
- AM/SSB/PA
- 40+ Watts
- Front Panel 4 Pin Mic Jack
- Mic Gain/RF Gain Controls
- On/Off/Vol and SQL Controls
- Band Selector (6 Bands)
- Dual Echo and Adjustable Talk Back/Off Controls
- Clarifier
- Channel Selector
- Small Meter with Scales for Signal Strength, Power,
and SWR Output
- S-RF/SWR Switch
- ANL-NB/OFF Switch
- USB/AM/LSB Switch
- Roger Beep/Radio/PA Switch
- Dimmer H/M/L Switch
- RF Power H/M/L Switch
- RX/TX Indicator LED
- Antenna Warning LED
- Channel Display
- Specifications:
- Mirage:
- Model: Mirage MX-86HP
- Frequency Range: 28.145 to 28.575 MHz
- Emission: AM/SSB
- Frequency Control: Phase-Lock-Loop (PLL)
Synthesizer
- Frequency Stability: 0.001%
- Temperature Range: -20C to +50C
- Antenna Impedance: 50 Ohms
- Antenna Connectors: Standard SO-239 type
- Input Voltage: 13.8V DC
- Size: 2-1/4" (H) x 7-3/8" (W) x
8-3/4" (D)
- Weight: 4.2 lb.
- Meter: Illuminated; indicates relative output
power, received signal strength and SWR level
- Transmitter:
- RF Power Output: AM: 10W SSB: 25W
- Spurious Emission: > -50 dB
- Audio Distortion: < 10%
- Frequency Response: 300 to 2500 Hz
- Microphone: Plug-in dynamic; with
push-to-talk switch and coiled cord
- Receiver:
- Sensitivity for 10 dB (S+N)/N: AM: 0.5 uV
- Sensitivity for 10 dB (S+N)/N: SSB: 0.25 uV
- Squelch Sensitivity: < 0.5 uV
- Image Rejection: > 50 dB
- Audio Power Output: 3W @ 10% Distortion
- Audio Response: 300 to 2500 Hz
- Contents:
- 10 Meter Mirage MX-86HP Radio
- 4 Pin Dynamic Microphone
- DC Power Cord
- Mounting Bracket with Hardware
- Microphone Hanger with Hardware
- User's Manual
- Color: Black
- Manufacturer's Limited Warranty
- Sold: Each
Mirage (MX-86HP) - AM/SSB/PA
Please Note:
- This Selection Is Mirage (MX-86HP) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
