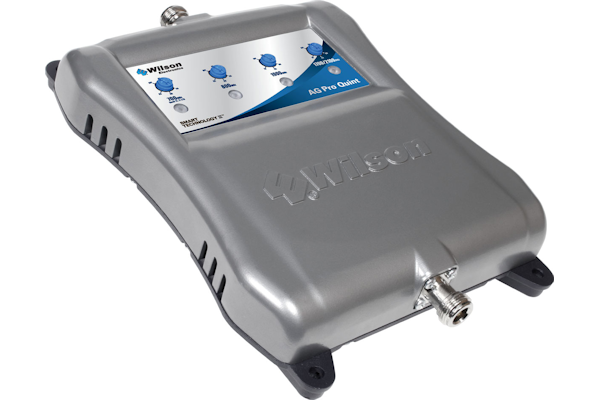

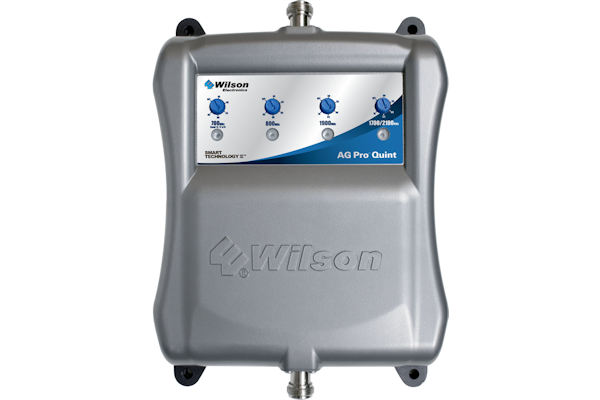

Wilson Electronics (461104) - AG Pro Quint 5-Band
SmarTech III Booster Kit, (700/800/AWS
(1700/2100)/1900MHz), 4G, 3G and 2G
Description:
The Wilson Electronics AG Pro-Quint cell phone signal
booster improves coverage - including 4G, 3G, and 2G data
downloads - for subscribers of all U.S. cellular networks
(except Clearwire). For specific information about
frequency bands, check the table below.
The AG Pro-Quint from Wilson Electronics is a five-band,
high performance indoor cellular signal booster for home
or enterprise applications. With 70dB gain and maximum
FCC-allowed uplink power, the AG Pro-Quint will amplify
weak cellular signals and provide reliable voice and data
coverage inside today's energy efficient - but
cellular unfriendly - homes, office and commercial
spaces.
The AG Pro-Quint's adjustable gain controls allow the
installer to quickly and easily customize the gain level
on each of the five frequency bands without the use of
external attenuators. This allows greater flexibility in
the placement of antennas, which simplifies the
installation process. The AG Pro-Quint supports multiple
simultaneous connections, and works with all cellular
devices.
With the AG Pro-Quint, you'll see fewer dropped
calls, faster downloads and a stronger, more reliable
cellular signal indoors.
Features and Specifications:
- Building Booster Kit
- FCC Certified to 2014 Technical Specs
- Boosts signal - including 4G - for all major U.S.
cell carriers (except Clearwire)
- U.S.-Based Tech Support & Customer Service

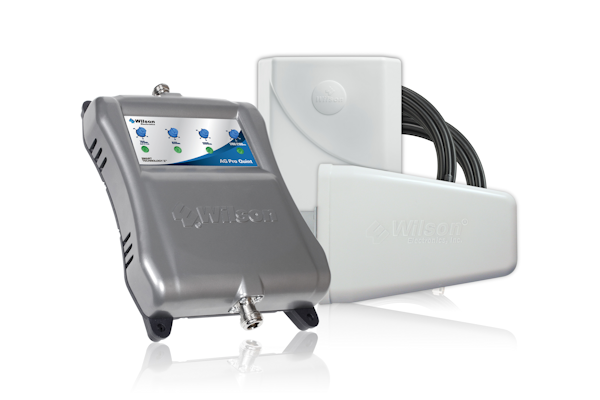

- All Needed Components Included In Package:
- AG Pro Quint Booster (461004)
- Wall Panel Antenna (311155)
- Directional Antenna (314411)
- 5V/2.5A AC/DC Power Supply (859948)
- 60' Black Wilson 400 Cable (952360)
- 75' Black Wilson 400 Cable (952375)
- Mounting Hardware
- Maximum FCC-Allowed Output Power
- DIY Installation
- Stronger Cell Signal Indoors
- Fewer Dropped Calls & Lost Connections
- Faster data downloads
- Clearer Voice Calls
- Longer Battery Life for Cellular Devices
- UPC 0811815022206
- Color: Grey / White
- Manufacturer's Limited Warranty - 2 Year(s)
- Sold: Each
Product Number
|
461104
|
Frequency
Band 17
|
700 MHz
|
Frequency
Band 13
|
700 MHz
|
Frequency
Band 5
|
850 MHz
|
Frequency
Band 4
|
1700/2100 MHz
|
Frequency
Band 2
|
1900 MHz
|
Max Gain
|
70 dB
|
Power Requirements
|
110-240 V AC, 50-60 Hz, 8 W
|
Connectors
|
N-Female
|
Dimensions
|
4.5 x 6.44 x 1.19 in. / 11.43 x 16.35 x 3.02 cm
|
Weight
|
2.53 lbs / 1.15 kg (Signal Booster Only)
|
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your
wireless provider and have your provider's consent.
Most wireless providers consent to the use of signal
boosters. Some providers may not consent to the use of
this device on their network. If you are unsure, contact
your provider. You MUST operate this device with approved
antennas and cables as specified by the manufacturer.
Antennas MUST be installed at least 20 cm (8 inches) from
any person. You MUST cease operating this device
immediately if requested by the FCC or a licensed
wireless service provider.
WARNING. E911 location information may not be provided or
may be inaccurate for calls served by using this device.
Please note, the four largest carriers, namely, AT&T,
T-Mobile, Verizon and Sprint, and more than 90 regional
carriers have given a blanket consent to all boosters
meeting the new certification standards.
Wilson Electronics (461104) - AG Pro Quint 5-Band
SmarTech III Booster Kit
Please Note:
- This Selection Is Wilson Electronics (461104) ONLY.
- Manufacturer's product specifications,
packaging and limited warranties (if applicable) are
subject to change.
- Images are solely for illustrative purposes and may
reflect multiple items or multiple views of a single
item.
- This Item Is Sold: Each
