SIGNALBOOST™ Mobile and Home/Office Cellular/PCS Amplifier 811210 |
|
 |
|
|
$257.95 |
|
|
| Features |
• Works on all generations of CDMA, TDMA and GSM
• Up to 3 watts maximum power
• Power control logic ensures maximum output power is within
cellular standards
• FCC and IC type accepted
• US and foreign Patents Pending
|
Benefits |
• Works with all Cellular/PCS cell phones and laptop data cards
(except iDEN, Nextel)
• Connects to ALL phones and data cards with a Universal
Connector using a removable adhesive backed Velcro® patch
• No plug-in adapter needed
• Up to 10 times more power than your cell phone or laptop data
card
• Significantly improves voice and data signal quality
• Increases data communication rates needed for 3G technologies
• Receives and transmits better than your cell phone
• Extends cell phone battery life
• Works great in mobile, in-building, and marine applications
• Easy to install and use, and it's inexpensive
|

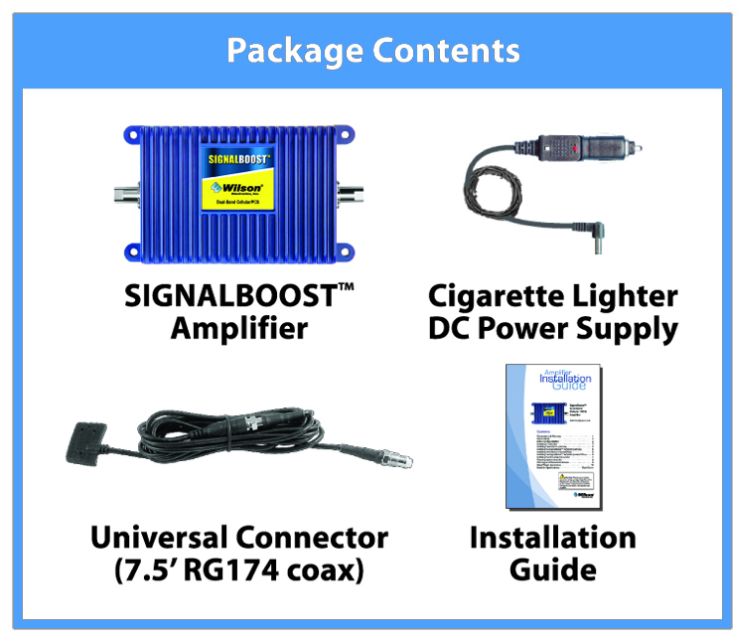

Package Contents |
 |
• Wilson® SIGNALBOOST™ Cellular Signal Amplifier
• Cigarette Lighter DC Power Supply
• Universal Connector with a removable adhesive backed Velcro®
patch
• Installation Guide
|
Optional Items |
• 4" Mini Magnet-Mount Antenna 301113
• 12" Magnet-Mount Antenna
301103
• 15" Glass-Mount Antenna
301102
• 32" Mirror-Mount Trucker Antenna
301101
• AC Power Supply (859903)
• Home Office Accessory Kit (859940)
|
|
| Specifications |
|
Part Number
|
|
811210 |
|
Frequency
|
|
824-894 MHz / 1850-1990 MHz |
|
Gain
|
|
cell site controlled |
|
Max Output Power
|
|
3 watts (cell site controlled) |
|
Max RF
|
|
+35 dBm / +33 dBm |
|
Noise Figure
|
|
3.5 dB nominal |
|
Flatness
|
|
± 2 dB / ± 2 dB |
|
Isolation
|
|
> 50 dB |
|
Power Requirements
|
|
12 V DC, 2 A max |
|
Connectors
|
|
FME-Male 50 ohms |
|
Dimensions
|
|
5 x 3.5 x 1.2 (inches) 12.7 x 8.9 x 3 (cm) |
|
Weight
|
|
1.03 lbs / 0.468 kg |
|
|
|
|
