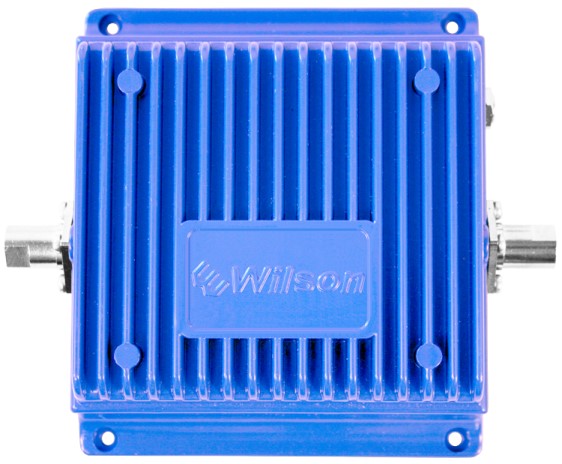

Direct Connection Cellular/PCS Dual-Band 824-894MHz / 1850-1990MHz Amplifier
811201 |
|
 |
|
|
$257.95 |
|
|
| Features |
• Improves voice and data signal quality
• Improves data communication rates needed for 3G technologies
• Power control logic ensures maximum output power is within
cellular network standards
• Automatic gain control
• Automatic shutdown on overload.
• Advanced electronics receive and transmit better than a cell
phone or cellular data card
• Connects directly to a cell phone or cellular data card with a
Wilson antenna adapter
• Mobile, marine and in-building use
• DC power supply included - AC power supply sold separately
• Greatly reduces disconnects, drop outs, and noise
• Transmits signal energy to the outside antenna
• FCC and IC type accepted
• MSRP: $269.95
|
| Specifications |
|
Part Number
|
|
811201 |
|
Frequency
|
|
824-894 MHz / 1850-1990 MHz |
|
Gain
|
|
10 dB / 14 dB |
|
Max Output Power
|
|
3 watts |
|
Max RF
|
|
+35 dBm / +15 dBm |
|
Noise Figure
|
|
3.5 dB nominal |
|
Flatness
|
|
± 2 dB / ± 2 dB |
|
Isolation
|
|
> 90 dB |
|
Power Requirements
|
|
12 V, 0.5-1.5 A max |
|
Connectors
|
|
FME-Male 50 ohms |
|
Dimensions
|
|
5.5 x 4.3 x 1.4 (inches) or 14.0 x
10.8 x 3.5 (cm) |
|
Weight
|
|
1.32 lbs or 0.6 kg |
|
|
|
|
|
