Ranger, the most reliable 10 meter radios in the world.

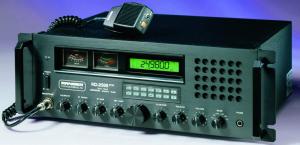

RCI-2995
DX
AM-FM-SSB-CW 10 & 12 Meter Base Transceiver |
  |
 | 10
& 12 Meter Bands |
| Improved
Receiver Design |
| Variable
Output Power Control |
| Receiver
Clarifier (±0.5kHz) |
| Noise
Blanker/ANL Circuitry |
| Programmable
Repeater Offset |
| Continuous
Duty Built-in AC Power Supply |
|
| Large
Frequency Display with Dimmer |
| New
Green Backlit Display |
| Active
Frequency Scanner |
| Ten
Programmable Frequencies |
| Programmable
Repeater Split |
| Dual
Panel Meters |
| Frequency
Selector Lockout |
|
Designed
to enhance any serious operators shack this rack-mounted unit offers
exceptional sound quality and large, easy-to-use controls. The RCI-2995DX
has features that include: AM-CW-FM-SSB modes of operation, variable
power, noise blanker and built-in heavy duty AC power supply and provides
150 watts PEP output, and a rear panel frequency meter output for
measuring transmit operating frequency.
Dual panel meters display received signal strength transmitter power
output and antenna SWR. Clarifier audio tone controls for accurate
receiver tuning improved reception under difficult conditions. Pushbutton
selection of programming scanning functions, and programmable repeater
split for FM operation enhances the renewed 10 meter repeater activity.
The RCI-2995DX offers microprocessor-based advanced features typically
found in high-end units costing several times as much, including
programmable repeater offset and capabilities for a CTCSS tone option —
great for increasing repeater activity on 10 meters — and receiver
scanning for quick search of active frequencies. The unit offers three
methods of frequency selection, non-volatile memory to store and scan up
to ten favorite frequencies, scanning of selected frequency segment or
stored frequencies and front panel frequency selector lockout .
In addition, the RCI-2995DX offers an impressive array of design and
performance improvements:
| An
improved receiver:
designed for increased sensitivity and image rejections. |
| A
double FET balanced mixer:
for improved receiver intermodulation rejection. |
| Surface
mount components:
for increased resistance to shock and vibration. |
| Variable
Power Output
from 150 watts to 2 watts - great for PSK-31 operation. |
|
| RCI-2995DX
Specifications |
|
General
|
RCI-2995DX
|
|
Frequency
Range
|
10
Mtr: 28.000 - 29.6999 MHz
12 Mtr: 24.8900 - 24.9900 MHz
|
|
Tuning
Steps
|
1
MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz
|
|
Emission
|
USB,
LSB, CW, AM, FM
|
|
Clarifier
Range
|
±5
KHz
|
|
Frequency
Tolerance
|
0.005%
|
|
Frequency
Stability
|
0.001%
|
|
Operating
Temperature Range
|
-
20 ºC to + 50 ºC
|
|
Meters
|
Left:
RX Signal Strength
Right: RF Output, Antenna SWR
|
|
Antenna
Impedance
|
50
W
|
|
Input
Voltage
|
110
VAC, 60 Hz
( 220 VAC, 50 Hz Optional )
|
|
AC
Power Consumptions
|
300
Watts
|
|
Microphone
|
400
W
Dynamic PTT - 6 Pin
|
|
Size
(W x D x H)
|
19"
x 12" x 6-1/4"
|
|
Weight
|
32
lb 6 oz
|
|
Shipping
Weight
|
38
lb.
|
| |
|
Transmitter
|
|
|
RF
Power Output
|
50
Watts RMS: CW / AM / FM
150 Watts (PEP): SSB
|
|
Modes
|
USB,
LSB, CW, AM, FM
|
|
Carrier
Suppression
|
Better
Than 60 dB
|
|
Spurious
Emission
|
More
Than 60 dB
|
|
Antenna
Connector
|
Standard
SO-239 Type
|
|
Output
Impedance
|
Unbalanced
50 W
|
| |
|
Receiver
|
|
|
Sensitivity
|
AM
/ CW: 0.7 µV for 10 db SINAD
FM: 0.5 µV for 12 db SINAD
SSB: 0.2 µV for 10 db SINAD
|
|
AM
/ FM Selectivity
|
50
db at 10 KHz
|
|
SSB
Selectivity
|
5
db at 2 KHz, 60 db at 4 KHz
|
|
Rejection
|
More
than 50 db
|
|
IF
Rejection
|
More
than 80 db at 455 KHz
|
|
Audio
Output Power
|
2.5
Watts @ 10% THD
|
|
Intermod
Rejection
|
>
50
db
|
|
Noise
Blanker
|
IF
Single Gate Type
|
|
Built
In Speaker
|
8
W
|
|
External
Speaker
|
Disables
Internal Speaker When Connected, 8 W
|
| Specifications
are subject to change without notice. |
|
