DX 95T2 Mobile

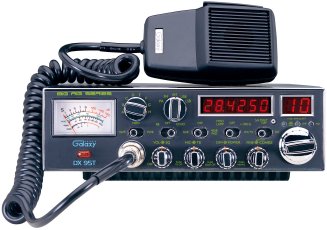

Galaxy DX 95T2

Noteworthy features include :

	A High-Performance output circuit that uses two Toshiba 2SC2290 power transistors to generate 50 watts for AM/FM and 150 watts for SSB operation
	Chassis incorporates a solid aluminum finned rear section as a heatsink
	Additional heat sink on the bottom of the radio with an internal Micro cooling fan increases the radio height from 2.5 to 3 inches
	Same main circuit board as our DX 2517, DX 93T, DX 48T and DX 45MP
	"StarLite" faceplate is matte black with all lettering backlit in green and blue
	Switchable sixth digit provides five or six digit frequency display
	Our exclusive "SuperSlider" circuit maximizes frequency control by switching the Fine clarifier between Receive/Transmit and Receive Only operation or completely out of the circuit with one slide switch. The Coarse clarifier operates on both receive and transmit unless the SuperSlider switch is off. When switched off, both clarifiers are out of the circuit.
	Retro-look red modulation lamp (with On/Off switch) flickers like the old neon lamps of the Fifties and Sixties
	There is a receive gain variable control on the DX 95T2.
	Front mic jack
	Variable power output control
	Red channel and frequency digits
	Heavy duty DC power cord

Strange and Unusual Features:

The echo has internal controls only. It is our famous dual control echo circuit without any controls on the front panel. The On/Off switch is there, but to adjust the echo sound, the bottom cover must be removed. Locate the rectangular metal box containing the echo board. Do not open this box. Use a small plastic tuning tool to gently adjust the trimmer pots inside the holes marked "ECHO" and "TIME." These pots are somewhat fragile so it is best not to use a metal screwdriver.

A single slide switch controls both the Echo and the Roger Beep. They can both be off, but they cannot both be on at the same time.

The DX 95T2 also has the following standard features found on most other Galaxy radios :

	Large, easy-to-read meter with 4 scales: "S" meter indicates up to 60dB over S9 Modulation percentage scale for use on AM Calibrated power scale SWR scale
	Automatic SWR circuit (No complicated calibration procedure required)
	LED's light red to warn of high SWR

	Talkback circuit with On/Off switch and volume control
	Variable dimmer control pot
	On/Off switch for frequency display
	Roger Beep circuit
	NB/ANL circuit
	Meter glows red during transmit
	Two year limited warranty

	Meter glows red during transmit
	NB/ANL circuit with green LED indicator
	Two year limited warranty
