Introducing
the first of the 10 Meter Big Rig Series Radios

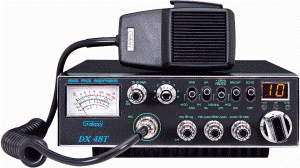

DX 48T
Looking for a RIG that talks
BIG?
Walk the walk and talk the
talk with this no-nonsense radio.
Some of the extras had to go to
produce this powerhouse in a clean, simple package.
New features include:
- A High Performance output circuit that uses
two Toshiba 2SC2290 power transistors to generate 50 dead key watts
and 100+ Watts PEP for AM and FM operation (No SSB operation)
- New chassis incorporates a solid aluminum
finned rear section as a heatsink
- Additional heatsink on the bottom of the radio
with an internal Micro cooling fan increases the radio height from
2.5 to 3 inches
- New "StarLite" EL faceplate is matte
black with all lettering backlit in green and blue
- Main circuit board upgraded to the same board
as the DX 2517 base radio
- Front mic jack
- Heavy duty DC power cord
Items NOT included:
- No frequency counter
- No jack for accessory frequency counter
- No Roger Beep circuit
- No clarifier
- Three-position dimmer switch takes the place
of a variable dimmer pot
The DX 48T also has the following standard
features found on other Galaxy radios:
- Large, easy-to-read meter with 4 scales:
- "S" meter indicates up to 60dB
over S9
- Modulation percentage scale for use on AM
- Calibrated power scale
- SWR scale
- Automatic SWR circuit (No complicated
calibration procedure required)
- LED lights red to warn of high SWR
- Variable power output control
- Echo with dual controls
- Talkback circuit with On/Off switch and volume
control
- Green/Red LED indicator for Receive/Transmit
- NB/ANL circuit
- Receive gain control
- Two year limited factory warranty.
|
